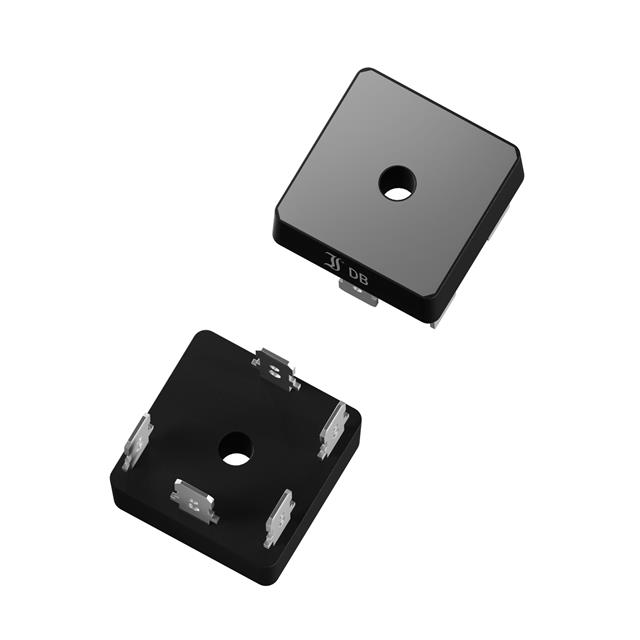

DB15-08

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

JESD-30 Code :

S-PUFM-X5

Packaging :

Box

Terminal Position :

UPPER

Subcategory :

Bridge Rectifier Diodes

Maximum Operating Temperature (°C) :

150

Military :

No

Output Current-Max :

15 A

Peak Average Forward Current (A) :

15

Package Shape :

Square

Peak Reverse Recovery Time (ns) :

1500(Typ)

Peak Reverse Repetitive Voltage (V) :

800

Number of Elements :

6

Surface Mount :

No

Diode Type :

BRIDGE RECTIFIER DIODE

Reach Compliance Code :

Compliant

Minimum Operating Temperature (°C) :

-50

Bridge Type :

Three Phase

Qualification Status :

Not Qualified

Number of Terminals :

5

Package Length :

28.5

Package Width :

28.5

Peak RMS Reverse Voltage (V) :

560

ECCN (US) :

EAR99

Technology :

Avalanche

Configuration :

Single

RoHS Status :

Yes with exemptions

Package Height :

10

HTS Code :

8541.10.00.80

Rep Pk Reverse Voltage-Max :

800 V

Terminal Form :

UNSPECIFIED

Supplier Temperature Grade :

COMMERCIAL

Pin Count :

5

Diode Element Material :

SILICON

Case Connection :

Isolated

Number of Phases :

3

Manufacturer :

Diotec Semiconductor AG

Peak Non-Repetitive Forward Surge Current (A) :

385

Peak Reverse Current (uA) :

10

Mounting :

Screw

Additional Feature :

UL RECOGNIZED

PCB changed :

5

AEC Qualified :

yes

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99

Non-rep Pk Forward Current-Max :

385 A
