DB15-02

Share

Or copy the link below:

Mfr.Part #
DB15-02
Manufacturer
Diotec Semiconductor
Package / Case
Datasheet
Download
Description
3P Rect, 200V, 15A, 350A, 1.05V
Stock
50
In Stock :
50

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Diotec Semiconductor
Product Category :
Diodes - Bridge Rectifiers
Diode Element Material :
SILICON
JESD-30 Code :
S-PUFM-X5
Package Shape :
Square
Surface Mount :
No
PCB changed :
5
Package Length :
28.5
Military :
No
Subcategory :
Bridge Rectifier Diodes
Maximum Operating Temperature (°C) :
150
Peak Average Forward Current (A) :
15
Configuration :
Single
Packaging :
Box
Automotive :
yes
Supplier Temperature Grade :
COMMERCIAL
Mounting :
Screw
Additional Feature :
UL RECOGNIZED
Reach Compliance Code :
Compliant
Package Width :
28.5
Peak Reflow Temperature (Cel) :
260
ECCN (US) :
EAR99
ECCN Code :
EAR99
Number of Phases :
3
Terminal Position :
UPPER
Bridge Type :
Three Phase
Peak RMS Reverse Voltage (V) :
140
Pin Count :
5
Peak Reverse Repetitive Voltage (V) :
200
Diode Type :
BRIDGE RECTIFIER DIODE
Rep Pk Reverse Voltage-Max :
200 V
Terminal Form :
UNSPECIFIED
HTS Code :
8541.10.00.80
Peak Non-Repetitive Forward Surge Current (A) :
385
Number of Terminals :
5
Manufacturer :
Diotec Semiconductor AG
Peak Reverse Current (uA) :
10
Non-rep Pk Forward Current-Max :
385 A
RoHS Status :
Yes with exemptions
Package Height :
10
Minimum Operating Temperature (°C) :
-50
Number of Elements :
6
Output Current-Max :
15 A
Qualification Status :
Not Qualified
Peak Reverse Recovery Time (ns) :
1500(Typ)
Case Connection :
Isolated
Introducing Diodes - Bridge Rectifiers Diotec Semiconductor DB15-02 from Chip IC,where excellence meets affordability. This product stands out with its DB15-02 pinout, DB15-02 datasheet PDF, DB15-02 amp .Beyond Diodes - Bridge Rectifiers Diotec Semiconductor DB15-02 ,we also offer MB2S-E3/80, DF08S-T, DBF310-13, Our vast inventory has you covered. Contact us now for immediate solutions.

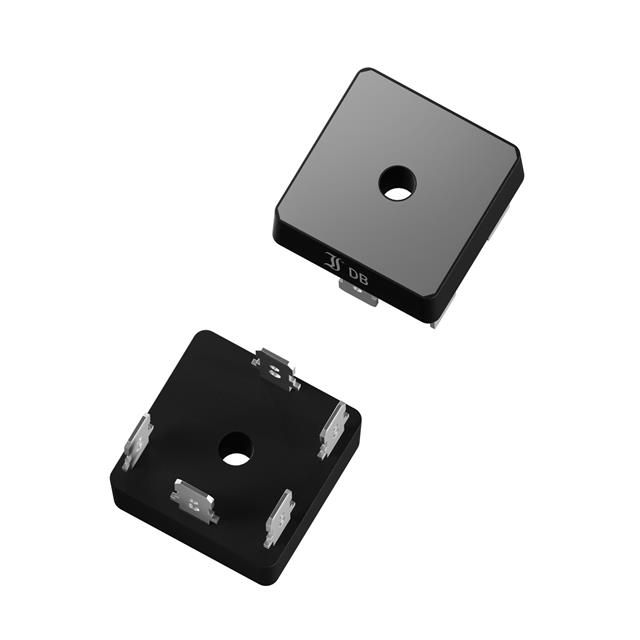

Diotec Semiconductor DB15-02


BRIDGE RECTIFIER DIODE SILICON 260 UPPER Box

DB15-02 Overview


According to the datasheets, the peak forward voltage is

DB15-02 Features


the forward peak voltage is
the peak RMS reverse voltage range of 140
a maximum output current voltage of 15 A


DB15-02 Applications


There are a lot of Diotec Semiconductor AG
DB15-02 applications of RF diodes.


  • RF voltage doubler
  • Wearables
  • Smart metering
  • Set top boxes
  • RF attenuators and switches
  • Low-loss, high-power limiters
  • Receiver protectors
  • UHF mixer
  • Sampling circuits
  • Modulators
