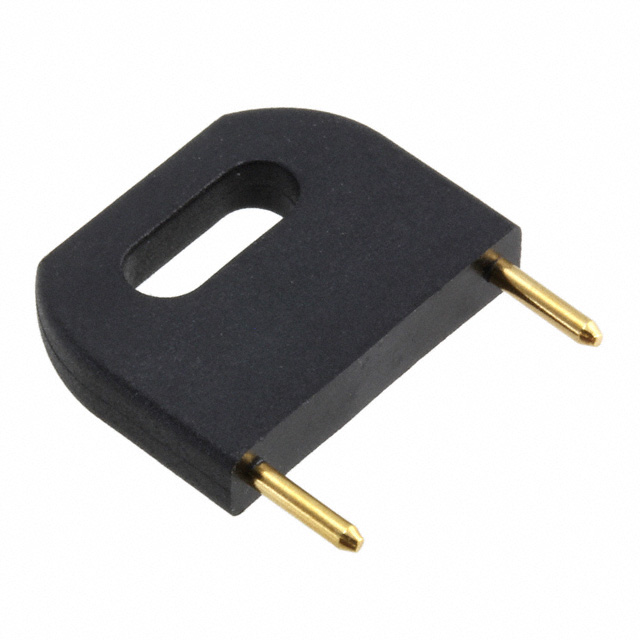

D3089-98
Or copy the link below:
- Mfr.Part #
- D3089-98
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- 1MM INSULATED SHORTING PLUG
- Stock
- 1,363
- In Stock ：
- 1,363
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- Orientation :
- Straight
- Factory Lead Time :
- 12 Weeks
- Current Rating :
- 2A
- Contact Finish :
- Gold
- REACH SVHC :
- No SVHC
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 1.05 mm
- Packaging :
- Bulk
- Pitch :
- 0.500 12.70mm
- Height :
- 0.476 12.10mm
- Number of Contacts :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 15.1mm
- Lead Pitch :
- 12.7mm
- Series :
- D308
- Max Current Rating :
- 10A
- RoHS Status :
- ROHS3 Compliant
- Gender :
- Male Pins
- Color :
- Black
- Width :
- 15.1mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Radiation Hardening :
- No
- Additional Feature :
- PLUG, PLASTIC
- Material :
- PBT, Polybutylene
- Published :
- 2000
- Type :
- Closed Top, Grip
- Insulation :
- Insulated
- Contact Material :
- Brass
- Number of Rows :
- 1
- Insulation Material :
- PBT
- Pbfree Code :
- yes
- Depth :
- 3.2mm
- ECCN Code :
- EAR99
- Datasheets
- D3089-98
