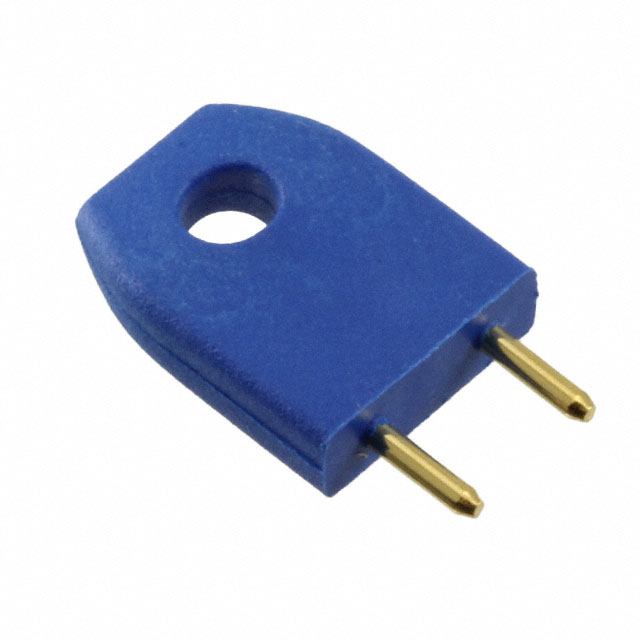

D3086-97
Or copy the link below:
- Mfr.Part #
- D3086-97
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN SHUNT 2 POS 5.08MM
- Stock
- 3,455
- In Stock ：
- 3,455
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- Additional Feature :
- PLUG, PLASTIC
- Material Flammability Rating :
- UL94 V-0
- REACH SVHC :
- No SVHC
- Packaging :
- Bulk
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Series :
- D308
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Pitch :
- 0.200 5.08mm
- Published :
- 2007
- Color :
- Blue
- Max Current Rating :
- 10A
- Factory Lead Time :
- 14 Weeks
- Gender :
- Male Pins
- Insulation :
- Insulated
- Orientation :
- Straight
- Type :
- Closed Top, Grip
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- PBT
- Lead Pitch :
- 5.08mm
- Length :
- 9.5mm
- Material :
- PBT, Polybutylene
- Current Rating :
- 2A
- Radiation Hardening :
- No
- Contact Material :
- Brass
- Hole Diameter :
- 1.05 mm
- Width :
- 12.7mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Number of Contacts :
- 2
- Pbfree Code :
- yes
- Height :
- 0.500 12.70mm
- Number of Rows :
- 1
- Depth :
- 3.2mm
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- D3086-97
