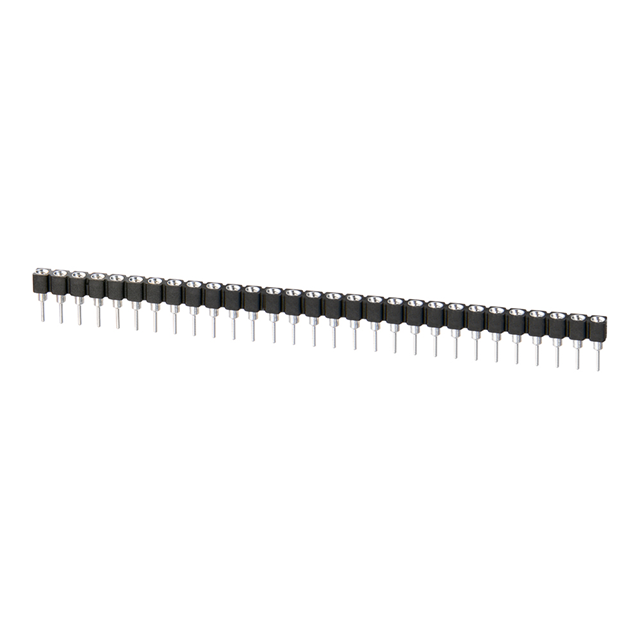

D01-9972942

Manufacturer :

Harwin

Product Category :

IC Sockets

Package / Case :

SIL

Lead Length :

3.175mm

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

JESD-609 Code :

e3

Mounting Type :

Through Hole

Series :

D01-997

Flammability Rating :

UL94 V-0

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Operating Temperature :

-55°C~125°C

Pitch - Post :

0.100 2.54mm

Current Rating :

1A

Number of Contacts :

29

Contact Material - Post :

Brass

Pitch - Mating :

0.100 2.54mm

Number of Positions or Pins (Grid) :

29 (1 x 29)

RoHS Status :

ROHS3 Compliant

Published :

2013

Contact Finish - Post :

Tin

Contact Finish Thickness - Mating :

Flash

Contact Material - Mating :

BERYLLIUM COPPER

HTS Code :

8536.69.40.40

Contact Resistance :

10MOhm

Type :

SIP

Additional Feature :

STANDARD: UL 94V-0

Termination Post Length :

0.125 3.18mm

Factory Lead Time :

13 Weeks

Contact Finish Thickness - Post :

196.9μin 5.00μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Contact Finish - Mating :

Gold

Number of Pins :

29

Pbfree Code :

yes

Termination :

Solder

Packaging :

Tube
