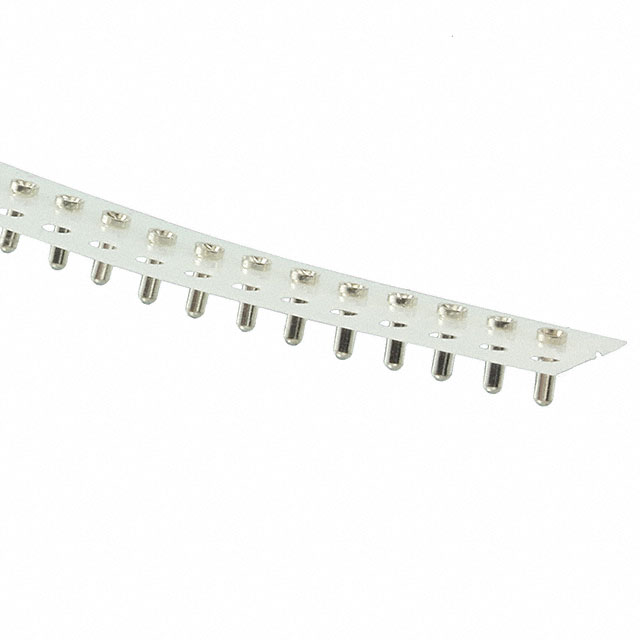

D01-6020001

Manufacturer :

Harwin

Product Category :

PC Pin Receptacles, Socket Connectors

Packaging :

Tube

Orientation :

Straight

Tail Type :

No Tail

Pitch :

2.54mm

Contact Plating :

Gold, Tin

RoHS Status :

ROHS3 Compliant

Max Current Rating :

2A

Insertion Force :

2.00N ~ 6.00N

Length :

3.6068mm

Gender :

FEMALE

Contact Finish :

Gold

Mounting Hole Diameter :

0.039 ~ 0.043 (0.99mm ~ 1.09mm)

Termination :

Solder

Depth :

1.45mm

Housing Material :

Brass

Contact Material :

BERYLLIUM COPPER

Pbfree Code :

yes

Number of Contacts :

100

Published :

2010

Radiation Hardening :

No

Flange Diameter :

0.057 (1.45mm)

Hole Diameter :

1.0922 mm

ECCN Code :

EAR99

Number of Positions :

6

Length - Overall :

0.142 3.61mm

Terminal and Terminal Block Type :

PCB TERMINAL

Contact Finish Thickness :

3.94μin 0.10μm

Mount :

Press Fit

Number of Rows :

1

Socket Depth :

0.124 3.15mm

Pin Hole Diameter :

0.043 (1.09mm)

Accepts Pin Diameter :

0.018 ~ 0.020 (0.46mm ~ 0.51mm)

Contact Resistance :

25mOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C
