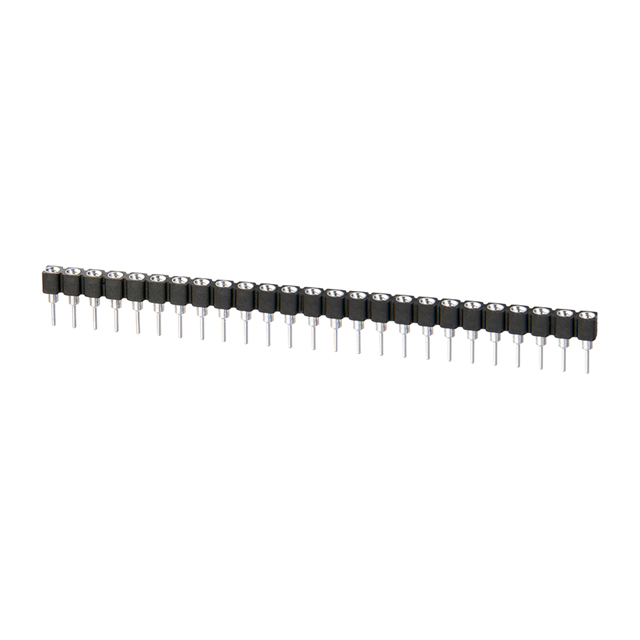

D01-9972542
Or copy the link below:
- Mfr.Part #
- D01-9972542
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET SIP 25POS GOLD
- Stock
- 45,131
- In Stock ：
- 45,131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- IC Sockets
- Pbfree Code :
- yes
- Packaging :
- Tube
- Flammability Rating :
- UL94 V-0
- Contact Material - Post :
- Brass
- Published :
- 2010
- Factory Lead Time :
- 17 Weeks
- Current Rating :
- 1A
- Contact Finish - Mating :
- Gold
- JESD-609 Code :
- e3
- Contact Finish Thickness - Post :
- 196.9μin 5.00μm
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Additional Feature :
- STANDARD: UL 94V-0
- Number of Positions or Pins (Grid) :
- 25 (1 x 25)
- Mount :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Housing Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Number of Contacts :
- 25
- Type :
- SIP
- Contact Resistance :
- 10MOhm
- Operating Temperature :
- -55°C~125°C
- Contact Material - Mating :
- BERYLLIUM COPPER
- Contact Finish - Post :
- Tin
- Radiation Hardening :
- No
- Termination :
- Solder
- Lead Length :
- 3.175mm
- Contact Finish Thickness - Mating :
- Flash
- Series :
- D01-997
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Pitch - Post :
- 0.100 2.54mm
- Termination Post Length :
- 0.125 3.18mm
- ECCN Code :
- EAR99
- HTS Code :
- 8536.69.40.40
- Datasheets
- D01-9972542
