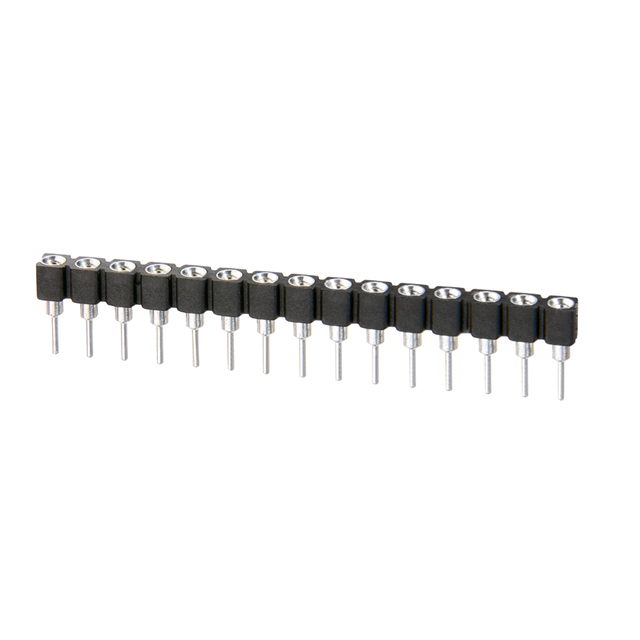

D01-9971542

Manufacturer :

Harwin

Product Category :

IC Sockets

Contact Resistance :

10MOhm

Lead Length :

3.175mm

Published :

2013

Packaging :

Tube

Mount :

Through Hole

Number of Contacts :

15

Series :

D01-997

Termination Post Length :

0.125 3.18mm

Contact Finish Thickness - Post :

196.9μin 5.00μm

Contact Material - Post :

Brass

Pitch - Post :

0.100 2.54mm

Factory Lead Time :

14 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Operating Temperature :

-55°C~125°C

JESD-609 Code :

e4

Contact Finish - Post :

Tin

Contact Finish Thickness - Mating :

Flash

Type :

SIP

Additional Feature :

STANDARD: UL 94V-0

Contact Material - Mating :

BERYLLIUM COPPER

ECCN Code :

EAR99

Number of Positions or Pins (Grid) :

15 (1 x 15)

HTS Code :

8536.69.40.40

Contact Finish - Mating :

Gold

Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Number of Pins :

15

Current Rating :

1A

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
