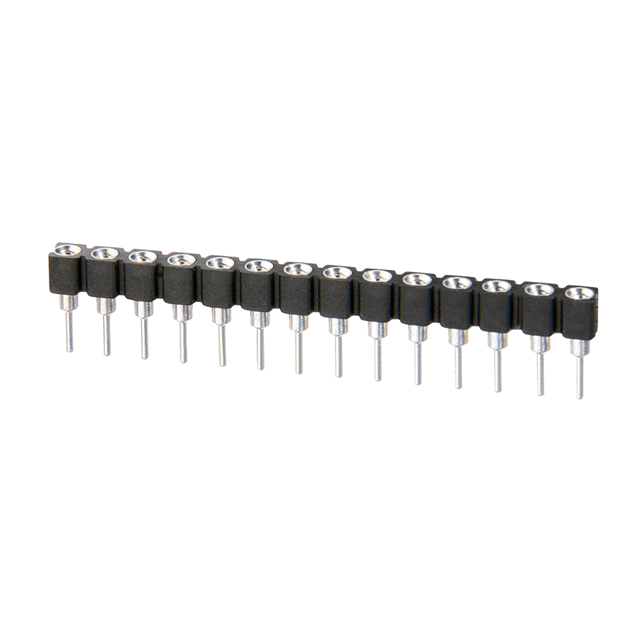

D01-9971442

Manufacturer :

Harwin

Product Category :

IC Sockets

Contact Resistance :

10MOhm

Factory Lead Time :

17 Weeks

Contact Finish Thickness - Post :

196.9μin 5.00μm

Number of Contacts :

14

Pitch - Post :

0.100 2.54mm

Termination Post Length :

0.125 3.18mm

Series :

D01-997

Packaging :

Tube

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

HTS Code :

8536.69.40.40

Number of Pins :

14

Package / Case :

SIL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

Contact Material - Mating :

BERYLLIUM COPPER

Additional Feature :

STANDARD: UL 94V-0

Material Flammability Rating :

UL94 V-0

Contact Finish - Mating :

Gold

Contact Finish - Post :

Tin

Contact Material - Post :

Brass

Lead Length :

3.175mm

Mounting Type :

Through Hole

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

JESD-609 Code :

e3

Contact Finish Thickness - Mating :

Flash

ECCN Code :

EAR99

Number of Positions or Pins (Grid) :

14 (1 x 14)

Termination :

Solder

RoHS Status :

ROHS3 Compliant

Type :

SIP

Current Rating :

1A

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Published :

2013
