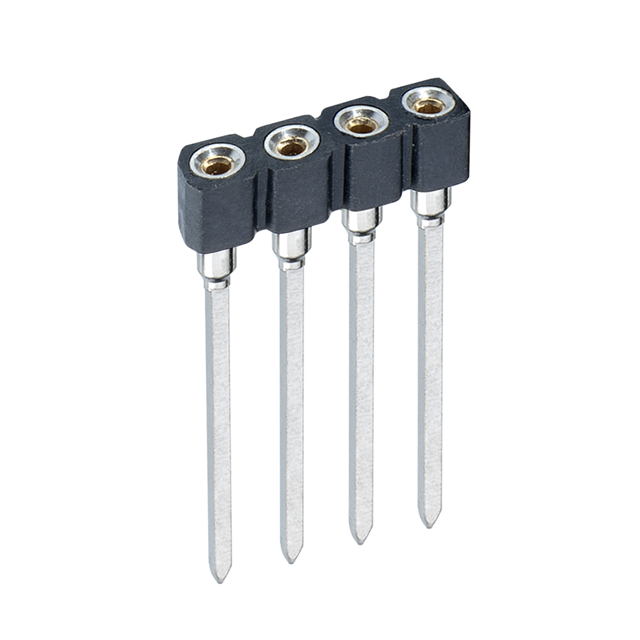

D01-9950442

Manufacturer :

Harwin

Product Category :

IC Sockets

Series :

D01-995

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Dielectric Withstanding Voltage :

1000VAC V

Pbfree Code :

yes

Contact Resistance :

10MOhm

Operating Temperature :

-55°C~125°C

Contact Material - Post :

Brass

JESD-609 Code :

e3

Pitch - Mating :

0.100 2.54mm

Factory Lead Time :

19 Weeks

Mating Contact Pitch :

0.1 inch

Flammability Rating :

UL94 V-0

Type :

SIP

Number of Pins :

4

Contact Finish - Mating :

Gold

Number of Contacts :

4

Current Rating :

1A

Pitch - Post :

0.100 2.54mm

Mount :

Through Hole

Contact Material - Mating :

BERYLLIUM COPPER

Body Breadth :

0.1 inch

Mounting Type :

Through Hole

Packaging :

Tube

Contact Finish - Post :

Tin

Number of Positions or Pins (Grid) :

4 (1 x 4)

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

196.9μin 5.00μm

ECCN Code :

EAR99

Termination :

Wire Wrap

Package / Case :

SIL

Published :

2010

Termination Post Length :

0.510 12.95mm

Insulation Resistance :

10000000000Ohm

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

RoHS Status :

ROHS3 Compliant

Lead Length :

12.954mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.193 inch
