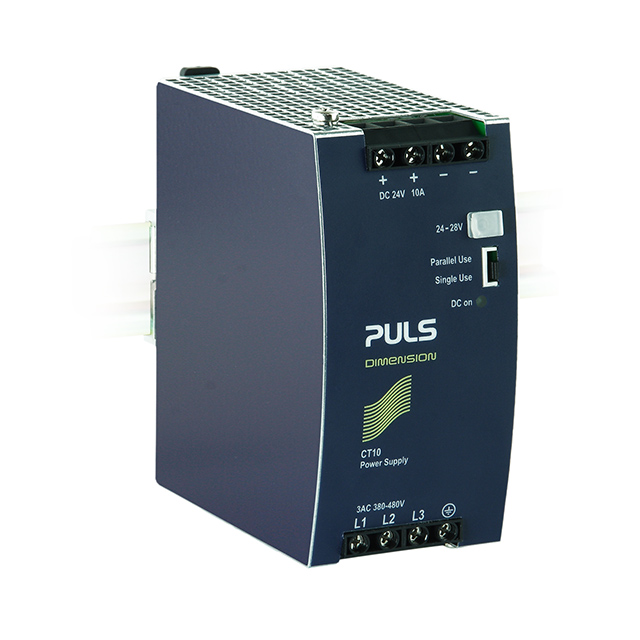

CT10.241-C1

Manufacturer :

PULS

Product Category :

Terminal Form :

UNSPECIFIED

Applications :

ITE (Commercial)

Number of Outputs :

1

Mounting Type :

DIN Rail

Terminal Position :

UNSPECIFIED

Voltage - Input :

323V~576VAC 3 Phase

Surface Mount :

No

Trim/Adjustable Output :

yes

Type :

Enclosed, Conformal Coated

Output Voltage :

24V

Reach Compliance Code :

not_compliant

RoHS Status :

RoHS Compliant

Number of Terminations :

9

Pbfree Code :

yes

Power (Watts) :

240W

Moisture Sensitivity Level (MSL) :

Not Applicable

Additional Feature :

ALSO REQUIRE 576VAC TO 700VAC INPUT VOLTAGE

Size / Dimension :

4.61Lx2.44W x 4.88 H 117.0mmx62.0mmx124.0mm

Operating Temperature :

-25°C~70°C With Derating

Number of Functions :

1

Feature :

Adjustable Output, Conformal Coating, Load Sharing

Total Power Output-Max :

240W

Factory Lead Time :

2 Weeks

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Isolation :

500V

Efficiency :

92.9%

Input Voltage-Nom :

380V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Output (Max) :

10A

JESD-30 Code :

R-XXMA-X9

Approval Agency :

CB, CE, cULus, cURus

Voltage - Output 1 :

24V

Series :

DIMENSION C (240W)
