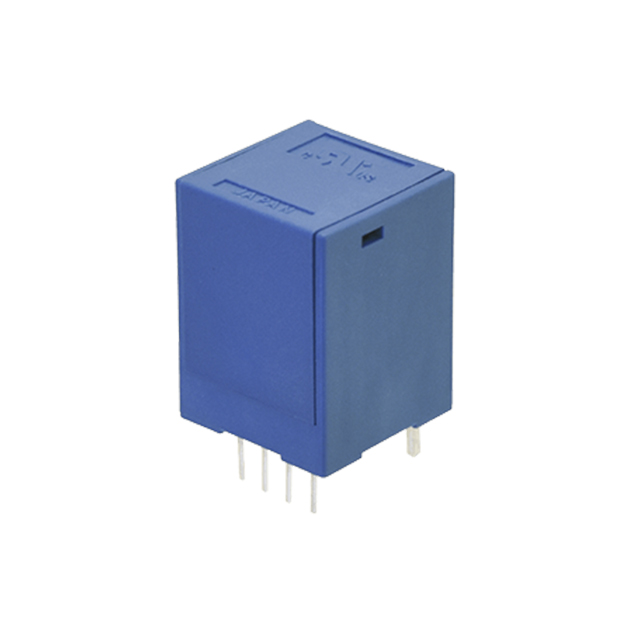

CS0350BL
Or copy the link below:
- Mfr.Part #
- CS0350BL
- Manufacturer
- CUI Devices
- Package / Case
- Module
- Datasheet
- Download
- Description
- CURRENT SENSOR,OPEN LOOP,3A,+/-5
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Current Sensors
- Mounting Type :
- Through Hole
- For Measuring :
- AC
- Series :
- CSXX50BL
- Output :
- Ratiometric, Voltage
- Polarization :
- Bidirectional
- Frequency :
- DC~55kHz
- Package / Case :
- Module
- Voltage - Supply :
- ±4.75V~5.25V
- Current - Sensing :
- 3A
- Response Time :
- 7μs
- Factory Lead Time :
- 13 Weeks
- Number of Channels :
- 1
- Sensor Type :
- Open Loop
- Current - Supply (Max) :
- 25mA
- Operating Temperature :
- -10°C~70°C
- Accuracy :
- ±4.9%
- RoHS Status :
- RoHS Compliant
- Linearity :
- ±0.5%
- Datasheets
- CS0350BL
CSXX50BL Series Open Loop Sensor 1-Channel Bidirectional -10°C~70°C ±4.75V~5.25V DC~55kHz 3A Accuracy-±4.9% Linearity-±0.5%
CS0350BL Overview
Safety precautions are taken by putting the current sensors in Module packages. These current sensors should supply 25mA current at their maximum.
CS0350BL Features
Operating Temperature: -10°C~70°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Open Loop
Supply Voltage: ±4.75V~5.25V
Frequency: DC~55kHz
Sensing Current: 3A
Module Package
CS0350BL Applications
There are a lot of CUI Devices
CS0350BL Current Sensors applications.
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
