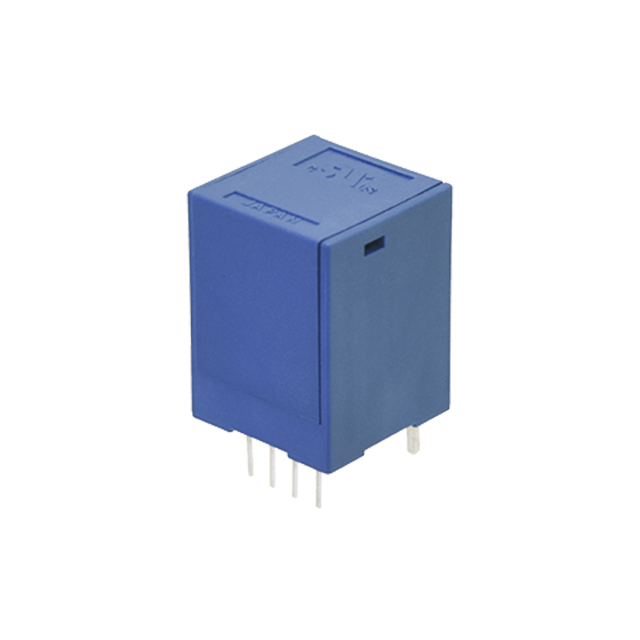

CS0305U
Or copy the link below:
- Mfr.Part #
- CS0305U
- Manufacturer
- CUI Devices
- Package / Case
- Module
- Datasheet
- Download
- Description
- CURRENT SENSOR,OPEN LOOP,5A,+5VD
- Stock
- 13,040
- In Stock ：
- 13,040
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Current Sensors
- RoHS Status :
- RoHS Compliant
- Package / Case :
- Module
- Response Time :
- 7μs
- Frequency :
- DC~40kHz
- For Measuring :
- AC
- Current - Supply (Max) :
- 25mA
- Linearity :
- ±0.5%
- Output :
- Ratiometric, Voltage
- Factory Lead Time :
- 13 Weeks
- Sensor Type :
- Open Loop
- Series :
- CSXX05U
- Current - Sensing :
- 3A
- Polarization :
- Unidirectional
- Number of Channels :
- 1
- Operating Temperature :
- -10°C~75°C
- Mounting Type :
- Through Hole
- Accuracy :
- ±4.2%
- Voltage - Supply :
- 4.75V~5.25V
- Datasheets
- CS0305U
CSXX05U Series Open Loop Sensor 1-Channel Unidirectional -10°C~75°C 4.75V~5.25V DC~40kHz 3A Accuracy-±4.2% Linearity-±0.5%
CS0305U Overview
As a safety precaution, current sensors are placed in Module packages. There should be 25mA maximum current supplied by these current sensors.
CS0305U Features
Operating Temperature: -10°C~75°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Open Loop
Supply Voltage: 4.75V~5.25V
Frequency: DC~40kHz
Sensing Current: 3A
Module Package
CS0305U Applications
There are a lot of CUI Devices
CS0305U Current Sensors applications.
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
