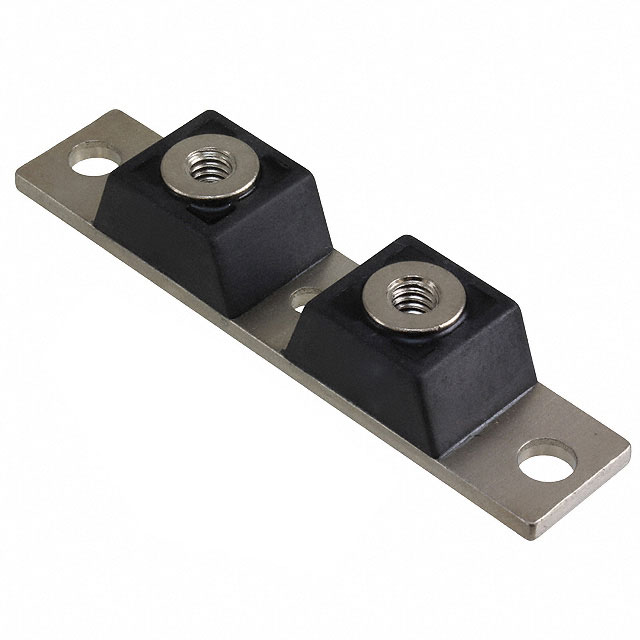

CPT40090

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Max Reverse Voltage (DC) :

90V

Voltage - Forward (Vf) (Max) @ If :

890mV @ 200A

Terminal Form :

UNSPECIFIED

Diode Type :

Schottky

Diode Configuration :

1 Pair Series Connection

Published :

2014

Element Configuration :

Common Cathode

Mount :

Chassis Mount, Screw

Min Operating Temperature :

-55°C

Pbfree Code :

No

Mounting Type :

Chassis Mount

Package / Case :

TO-244AB

Number of Terminations :

2

Peak Non-Repetitive Surge Current :

3kA

Terminal Position :

UPPER

Current - Reverse Leakage @ Vr :

5mA @ 90V

Number of Phases :

1

HTS Code :

8541.10.00.80

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

3

Pin Count :

2

Forward Current :

400A

Average Rectified Current :

200A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

ECCN Code :

EAR99

Diode Element Material :

SILICON

Max Operating Temperature :

175°C

Packaging :

Bulk

Radiation Hardening :

No

Number of Elements :

2

RoHS Status :

RoHS Compliant

Peak Reverse Current :

5mA

JESD-30 Code :

R-XUFM-X2

Application :

Power

Max Repetitive Reverse Voltage (Vrrm) :

90V
