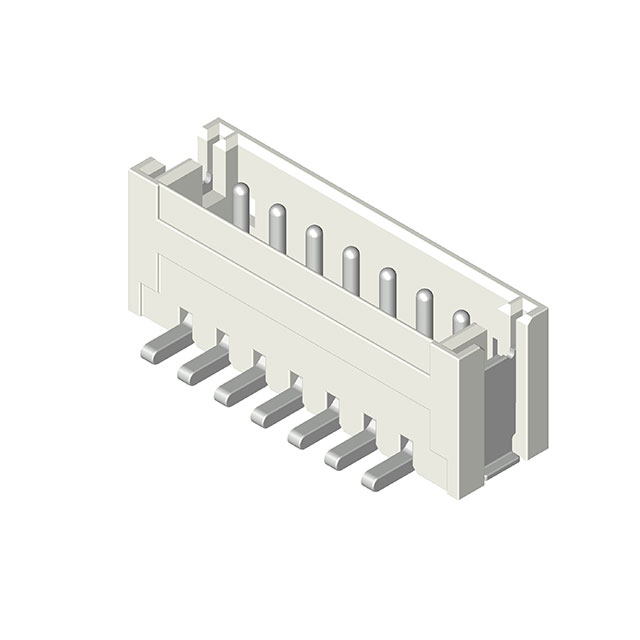

CI1502M1VR0-NH

Manufacturer :

CviLux

Product Category :

Headers, Male Pins

Applications :

-

Fastening Type :

Detent Lock

Package :

Tape and Reel (TR);Cut Tape (CT);

Insulation Height :

0.199 (5.05mm)

Current Rating (Amps) :

1A (AC/DC)

Number of Positions :

2

Contact Finish - Post :

Tin

Contact Finish Thickness - Mating :

120.0µin (3.05µm)

Insulation Color :

Natural

Contact Finish Thickness - Post :

120.0µin (3.05µm)

Shrouding :

Shrouded - 4 Wall

Ingress Protection :

-

Contact Length - Mating :

0.093 (2.36mm)

Contact Length - Post :

-

Material Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Series :

CI15

Number of Positions Loaded :

All

Features :

Pick and Place, Solder Retention

Pitch - Mating :

0.059 (1.50mm)

Termination :

Solder

Mounting Type :

Surface Mount

Insulation Material :

Plastic, Halogen Free

Contact Shape :

Square

Contact Material :

Brass

Contact Finish - Mating :

Tin

Overall Contact Length :

-

Number of Rows :

1

Voltage Rating :

50VAC

Connector Type :

Header

Mated Stacking Heights :

-

Product Status :

Active

Style :

Board to Cable/Wire

Row Spacing - Mating :

-

Operating Temperature :

-25°C ~ 85°C

Base Product Number :

CI1502M1
