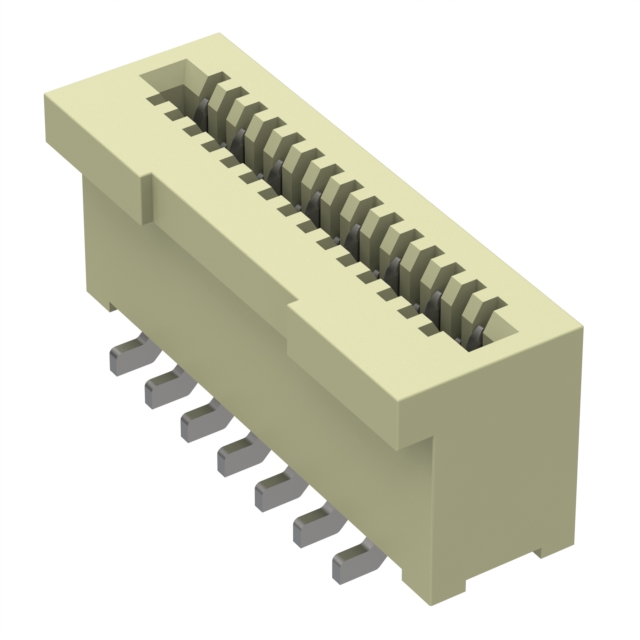

CF24152V0R0-NH
Or copy the link below:
- Mfr.Part #
- CF24152V0R0-NH
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- CF24 SERIES 0.50MM(.020") LIF TO
- Stock
- 2,000
- In Stock ：
- 2,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- FFC, FCB Thickness :
- 0.30mm
- Mounting Type :
- Surface Mount
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Current Rating (Amps) :
- 0.4A
- Features :
- Low Insertion Force (LIF), Pick and Place Cap
- Cable End Type :
- Straight
- Actuator Material :
- Polyamide (PA6T), Nylon 6T, Halogen Free
- Voltage Rating :
- 50V
- Contact Finish Thickness :
- Flash
- Series :
- CF24
- Product Status :
- Active
- Mating Cycles :
- -
- Housing Color :
- Natural
- Housing Material :
- Polyamide (PA6T), Nylon 6T, Halogen Free
- Flat Flex Type :
- FFC, FPC
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Pitch :
- 0.020 (0.50mm)
- Height Above Board :
- 0.165 (4.20mm)
- Locking Feature :
- -
- Operating Temperature :
- -25°C ~ 85°C
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 15
- Termination :
- Solder
- Actuator Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Datasheets
- CF24152V0R0-NH
CF24 Series FFC, FPC Contacts, Vertical - 1 Sided 0.020 (0.50mm) Solder 15 Positions Surface Mount Gold -25°C ~ 85°C 0.4A
CF24152V0R0-NH Overview
There is a Surface Mount mounting type for the device.Product number CF24 belongs to the CF24 Series.This device operates at a temperature of -25°C ~ 85°C.
CF24152V0R0-NH Features
CF24 series
CF24152V0R0-NH Applications
There are a lot of Cvilux
CF24152V0R0-NH FFC, FPC (Flat Flexible) Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
