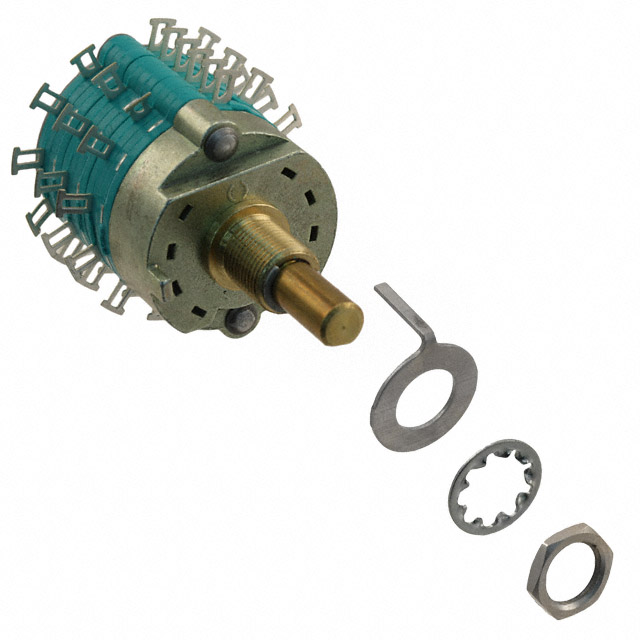

C4D0312N-A
Or copy the link below:
- Mfr.Part #
- C4D0312N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-12POS 300MA 125V
- Stock
- 92
- In Stock ：
- 92
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Illumination Type :
- Illuminated
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Contact Finish :
- Silver
- Depth Behind Panel :
- 34.54mm
- RoHS Status :
- RoHS Compliant
- Number of Poles per Deck :
- 1
- Termination Style :
- Solder Lug
- ECCN Code :
- EAR99
- Throw Configuration :
- 3P12T, SP12T
- Max Voltage Rating (AC) :
- 125V
- Voltage - Rated DC :
- 28V
- Mechanical Life :
- 25000 cycles
- Mount :
- Panel
- Mounting Type :
- Panel Mount
- Index Stops :
- Adjustable
- Actuator Length :
- 12.70mm
- Current Rating :
- 500mA
- Contact Style :
- Non-Shorting
- Depth :
- 34.544mm
- Circuit per Deck :
- SP12T
- Number of Decks :
- 3
- Number of Positions :
- 2 ~ 12
- Lead Free :
- Lead Free
- Factory Lead Time :
- 6 Weeks
- Switch Type :
- ROTARY SWITCH
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Actuator Type :
- Flatted (6.35mm Dia)
- Max Voltage Rating (DC) :
- 28V
- REACH SVHC :
- Unknown
- Ratings :
- IP67
- Series :
- C4
- Index Angle :
- 30 °
- Contact Resistance :
- 3mOhm
- Length :
- 20.1mm
- Termination :
- Lug
- Contact Timing :
- Non-Shorting (BBM)
- Published :
- 2006
- Voltage - Rated AC :
- 125V
- Orientation :
- Straight
- Insulation Resistance :
- 10GOhm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Diameter :
- 38.1mm
- Contact Material :
- Brass
- Datasheets
- C4D0312N-A
