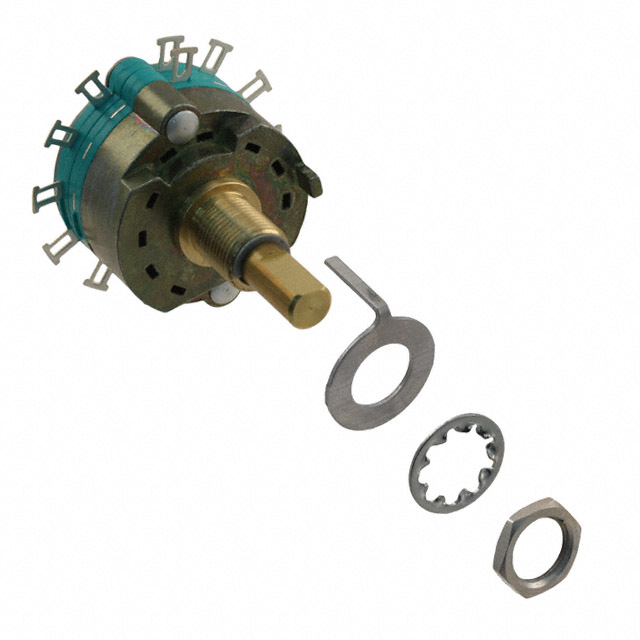

C4D0206N-A
Or copy the link below:
- Mfr.Part #
- C4D0206N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-6POS 300MA 125V
- Stock
- 93
- In Stock ：
- 93
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Switch Type :
- ROTARY SWITCH
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Resistance :
- 3mOhm
- Contact Current Rating :
- 200mA
- Max Voltage Rating (DC) :
- 28V
- Voltage - Rated AC :
- 125V
- Contact Timing :
- Non-Shorting (BBM)
- Termination :
- Lug
- Contact Material :
- Brass
- Reach Compliance Code :
- Unknown
- Actuator Length :
- 12.70mm
- Mechanical Life :
- 25000 cycles
- Factory Lead Time :
- 6 Weeks
- Mounting Type :
- Panel Mount
- Ratings :
- IP67
- Mount :
- Panel
- ECCN Code :
- EAR99
- Number of Poles per Deck :
- 2
- Circuit per Deck :
- DP6T
- Number of Positions :
- 2 ~ 6
- Series :
- C4
- Depth :
- 20.1168mm
- Voltage - Rated DC :
- 28V
- Contact Finish :
- Silver
- Depth Behind Panel :
- 20.12mm
- Orientation :
- Straight
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Current Rating :
- 500mA
- Index Angle :
- 30 °
- Max Voltage Rating (AC) :
- 125V
- Number of Decks :
- 1
- Termination Style :
- Solder Lug
- Insulation Resistance :
- 10GOhm
- Illumination Type :
- Illuminated
- Contact Style :
- Non-Shorting
- RoHS Status :
- RoHS Compliant
- Published :
- 2006
- Index Stops :
- Adjustable
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Lead Free :
- Lead Free
- Actuator Type :
- Flatted (6.35mm Dia)
- Datasheets
- C4D0206N-A
