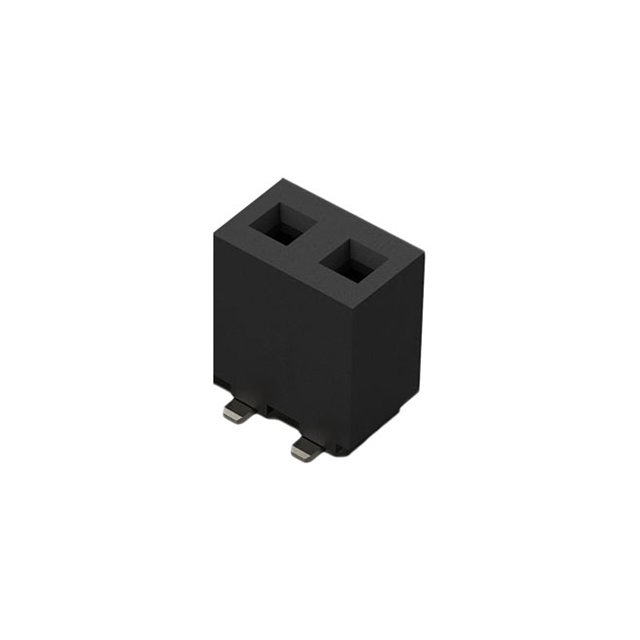

BH015-02-C-E
Or copy the link below:
- Mfr.Part #
- BH015-02-C-E
- Manufacturer
- GCT
- Package / Case
- Datasheet
- Download
- Description
- CONN RECEPT SMD 2POS 3.96MM
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- GCT
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Color :
- Black
- Contact Type :
- Female Socket
- RoHS :
- Details
- Product Status :
- Active
- Material Flammability Rating :
- UL94 V-0
- Mounting Style :
- SMD/SMT
- Product :
- Sockets
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Row Spacing - Mating :
- -
- Style :
- Board to Board
- Ingress Protection :
- -
- Flammability Rating :
- UL 94 V-0
- Number of Positions :
- 2 Position
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Current Rating (Amps) :
- 7.9A per Contact
- Packaging :
- Tube
- Base Product Number :
- BH015
- Maximum Operating Temperature :
- + 105 C
- Contact Length - Post :
- -
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- -
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Tin
- Voltage Rating :
- -
- Mounting Angle :
- Straight
- Package :
- Tube
- Contact Shape :
- Square
- Operating Temperature :
- -40°C ~ 105°C
- Mated Stacking Heights :
- -
- Current Rating :
- 7.9 A
- Features :
- Pick and Place
- Number of Rows :
- 1 Row
- Connector Type :
- Receptacle, Bottom or Top Entry
- Contact Finish Thickness - Mating :
- -
- Minimum Operating Temperature :
- - 40 C
- Series :
- BH015
- Applications :
- -
- Insulation Height :
- 0.350 (8.89mm)
- Pitch :
- 3.96 mm
- Insulation Resistance :
- 1000 MOhms
- Termination :
- Solder
- Pitch - Mating :
- 0.156 (3.96mm)
- Contact Plating :
- Tin
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Fastening Type :
- Push-Pull
- Datasheets
- BH015-02-C-E
BH015-02-C-E Documents
Receptacle, Bottom or Top Entry Tube 1 Row Rows 3.96 mm Surface Mount 2 Position Positions BH015 Solder Phosphor Bronze
BH015-02-C-E Overview
This product is packaged in a Receptacle, Bottom or Top Entry box.An Tube case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the BH015 Series.
BH015-02-C-E Features
BH015 series
Package / Case: Tube
Mounting Type:Surface Mount
BH015-02-C-E Applications
There are a lot of GCT
BH015-02-C-E Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
