BE2P-SHF-1AA(LF)(SN)
Or copy the link below:
- Mfr.Part #
- BE2P-SHF-1AA(LF)(SN)
- Manufacturer
- JST
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.5MM
- Stock
- 240
- In Stock ：
- 240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JST
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.394 10.00mm
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- JESD-609 Code :
- e3
- Fastening Type :
- Friction Lock
- Insulation Color :
- Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 16 Weeks
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Series :
- NH
- Termination :
- Solder
- Contact Shape :
- Square
- Insulation Material :
- Polyamide (PA6), Nylon 6
- Number of Positions :
- 2
- Mount :
- Through Hole
- Operating Temperature :
- -25°C~85°C
- Current Rating (Amps) :
- 3A
- Voltage - Rated :
- 250V
- Contact Finish - Mating :
- Tin
- Connector Type :
- Header, Bottom Entry
- Published :
- 2012
- UL Flammability Code :
- 94V-0
- Contact Material :
- Brass
- Pitch - Mating :
- 0.098 2.50mm
- Contact Length - Mating :
- 0.236 6.00mm
- Contact Length - Post :
- 0.130 3.30mm
- Contact Type :
- Male Pin
- IEC Conformance :
- No
- MIL Conformance :
- No
- Packaging :
- Bulk
- DIN Conformance :
- No
- Shrouding :
- Unshrouded
- Datasheets

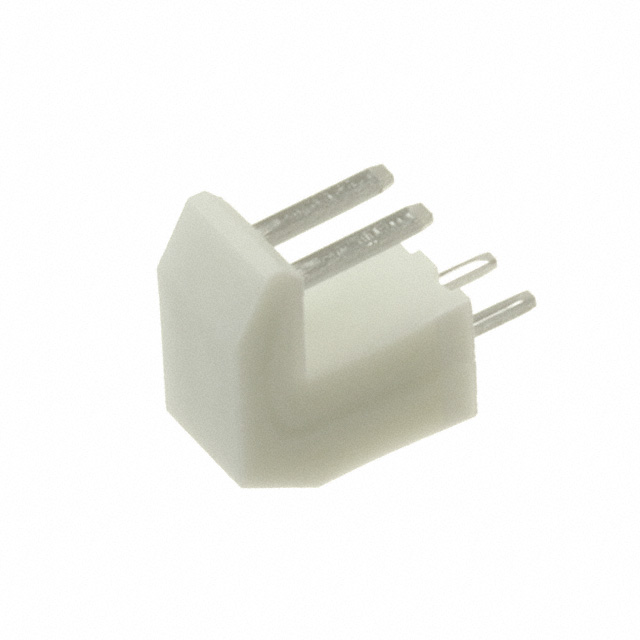

- BE2P-SHF-1AA(LF)(SN)
(SN).JPG)
NH Series 1-Row Header, Bottom Entry Solder Brass Bulk Through Hole Tin Polyamide (PA6), Nylon 6 2-Position Board to Cable/Wire 0.394 10.00mm Height
BE2P-SHF-1AA(LF)(SN) Overview
Currently, it is packaged in Header, Bottom Entry.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the NH Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-25°C~85°C Operating Temperature is the default operating temperature for the device.
BE2P-SHF-1AA(LF)(SN) Features
NH series
BE2P-SHF-1AA(LF)(SN) Applications
There are a lot of JST Sales America Inc.
BE2P-SHF-1AA(LF)(SN) Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
