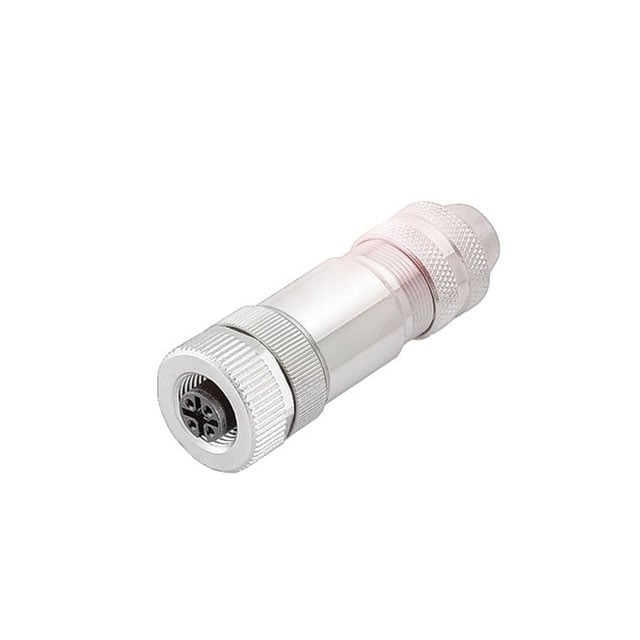

BCC03Y1

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Series :

-

Fastening Type :

Threaded

Model :

Female (bus)

Shell Material :

Zinc Die Cast

Current Rating (Amps) :

4A

Package :

Bag

Number of Positions :

4

Shell Size - Insert :

M12-4

Mounting Feature :

-

Contact Finish Thickness - Mating :

-

Ingress Protection :

IP67 - Dust Tight, Waterproof

Body Orientation :

Straight

Shell Finish :

-

Voltage Rating :

250VAC/DC

Operating Temperature :

-40°C ~ 85°C

Contact Finish - Mating :

-

Mounting Type :

Free Hanging (In-Line)

Primary Material :

Metal

Number of Contacts :

4

Contact Material :

Brass

Termination Method :

Screw

Features :

Backshell, Coupling Nut

IP Rating :

IP67

Insert Material :

Polyamide (PA), Nylon

Backshell Material, Plating :

Zinc Die Cast

Shell Size, MIL :

-

Product Status :

Active

Color :

Silver

Termination :

Screw

Applications :

-

Connector Type :

Plug, Female Sockets

RoHS :

Compliant

Cable Opening :

0.197" ~ 0.315" (5.00mm ~ 8.00mm)

Shielding :

Shielded

Coding :

D

Orientation :

D

Material Flammability Rating :

-
