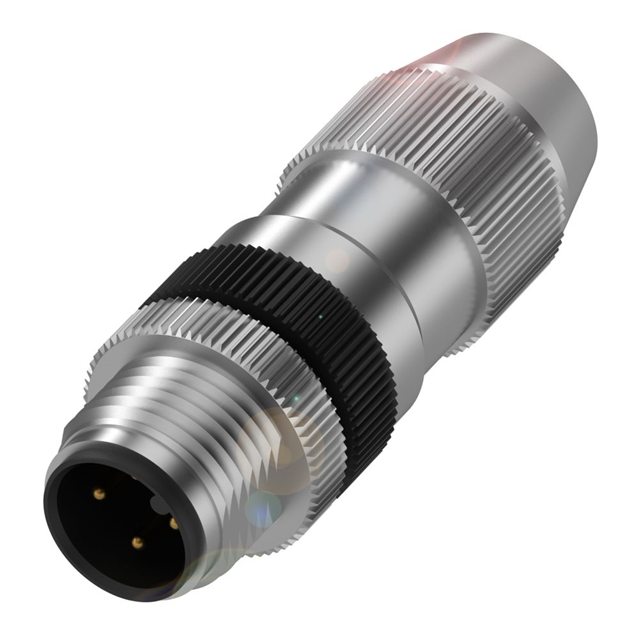

BCC02H9

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Termination :

IDC

Backshell Material, Plating :

Plastic

Material Flammability Rating :

-

Shell Finish :

Nickel

Color :

Silver

Series :

-

Current Rating (Amps) :

4A

Number of Positions :

4

Shell Size, MIL :

-

Contact Material :

Brass

Orientation :

A

Contact Finish Thickness - Mating :

-

Primary Material :

Metal

Model :

Male (plug)

Connector Type :

Receptacle, Male Pins

Mounting Type :

Free Hanging (In-Line)

Shielding :

Unshielded

Contact Finish - Mating :

-

Number of Contacts :

4

Material housing :

Plastic

Termination Method :

Screw

Fastening Type :

Threaded

Shell Material :

Brass

Operating Temperature :

-40°C ~ 85°C

IP Rating :

IP67

Package :

Bag

Shell Size - Insert :

M12-4

Product Status :

Active

Features :

Backshell

Mounting Feature :

-

Body Orientation :

Straight

Cable Opening :

0.114" ~ 0.201" (2.90mm ~ 5.10mm)

Coding :

A

Insert Material :

Polyamide (PA), Nylon

Applications :

-

Ingress Protection :

IP67 - Dust Tight, Waterproof

Voltage Rating :

32VAC/DC
