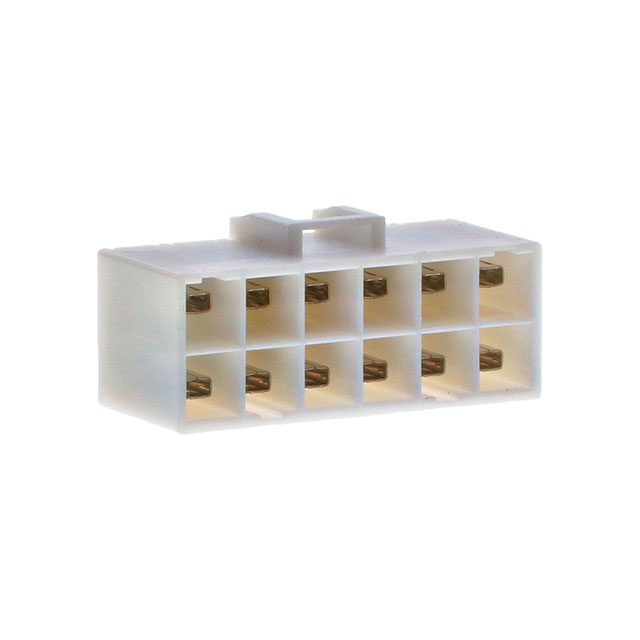

B12P-VL

Manufacturer :

JST

Product Category :

Headers, Male Pins

Current Rating :

20A

Contact Length - Post :

0.142 3.60mm

Row Spacing - Mating :

0.326 (8.28mm)

DIN Conformance :

No

Number of Positions :

12

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Insulation Color :

Natural

Mount :

Through Hole

Contact Type :

Male Pin

REACH SVHC :

Unknown

Orientation :

Straight

Empty Shell :

No

UL Flammability Code :

94V-0

Contact Finish - Mating :

Tin

Gender :

Male

Fastening Type :

Latch Holder

Stack Height (Mating) :

29.2mm

Shrouding :

Shrouded - 4 Wall

Series :

VL

Insulation Height :

0.646 16.40mm

Connector Type :

Header

IEC Conformance :

No

Contact Shape :

Square

Option :

GENERAL PURPOSE

Operating Temperature :

-25°C~90°C

Insulation Material :

Polyamide (PA66), Nylon 6/6

Filter Feature :

No

Pitch - Mating :

0.244 6.20mm

MIL Conformance :

No

ECCN Code :

EAR99

Factory Lead Time :

16 Weeks

Pbfree Code :

yes

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Packaging :

Bulk

Mixed Contacts :

No

Mounting Type :

Through Hole

Voltage - Rated :

600V

Published :

1998

Termination :

Solder

Number of Rows :

2

RoHS Status :

RoHS Compliant

HTS Code :

8536.69.40.30

Shell Material :

POLYAMIDE66

Contact Material :

COPPER ALLOY
