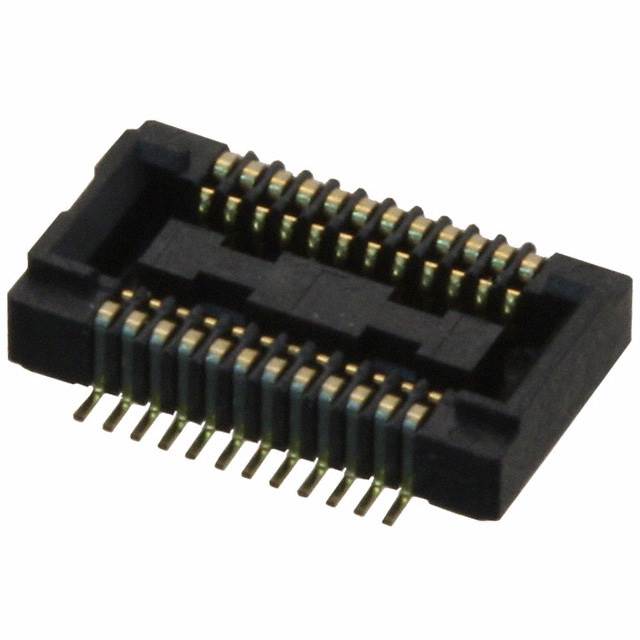

AXK724147G
- Mfr.Part #
- AXK724147G
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 24POS SMD GOLD
- Stock
- 3,730
- In Stock :
- 3,730
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Stack Height :
- 1.5mm
- Mixed Contacts :
- No
- Reference Standard :
- UL
- Number of Positions :
- 24
- Number Of PCB Rows :
- 2
- Housing Material :
- Polymer
- Insulation Resistance :
- 1000000000Ohm
- Max Operating Temperature :
- 85°C
- Packaging :
- Tape and Reel (TR)
- Current Rating :
- 300mA
- Withdrawl Force-Min :
- .0556 N
- MIL Conformance :
- No
- Dielectric Withstanding Voltage :
- 150VAC V
- JESD-609 Code :
- e4
- Contact Resistance :
- 70mOhm
- PCB Contact Pattern :
- RECTANGULAR
- Max Voltage Rating (AC) :
- 60V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insertion Force-Max :
- .973 N
- Mounting Type :
- Surface Mount
- Gender :
- FEMALE
- Durability :
- 50 Cycles
- Body Breadth :
- 0.161 inch
- Polarization Key :
- POLARIZED HOUSING
- Min Operating Temperature :
- -55°C
- UL Flammability Code :
- 94V-0
- Pitch :
- 0.016 0.40mm
- Factory Lead Time :
- 10 Weeks
- DIN Conformance :
- No
- Housing Color :
- Black
- Additional Feature :
- LOW PROFILE
- Length :
- 7.1mm
- RoHS Status :
- RoHS Compliant
- Depth :
- 3.75mm
- Series :
- P4
- Rated Current (Signal) :
- 5A
- Voltage - Rated :
- 60V
- Orientation :
- Straight
- Lead Free :
- Lead Free
- Number of Rows :
- 2
- Connector Type :
- Socket, Center Strip Contacts
- PCB Contact Row Spacing :
- 4.5974 mm
- Reliability :
- COMMERCIAL
- Contact Style :
- BELLOWED TYPE
- Published :
- 2008
- Max Voltage Rating (DC) :
- 60V
- Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Contact Finish :
- Gold
- Radiation Hardening :
- No
- IEC Conformance :
- No
- Filter Feature :
- No
- Max Current Rating :
- 5A
- Option :
- GENERAL PURPOSE
- Height Above Board :
- 0.059 1.50mm
- Mount :
- Surface Mount
- Total Number of Contacts :
- 24
- Number of Conductors :
- ONE
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Datasheets
- AXK724147G
Socket, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 24 Positions P4 Gold Solder
AXK724147G Overview
Currently, it is packaged in Socket, Center Strip Contacts.Packaging the product involves using a Tape & Reel (TR) case.Mounting type Surface Mount is assigned to the device.Among the products in the P4 Series, it is one of the most popular.This part must be mounted using a Surface Mount socket.It works best at below 85°C.The device must be operated at a temperature of -55°C.There are also other features, like LOW PROFILE, to name a few.
AXK724147G Features
P4 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: LOW PROFILE
AXK724147G Applications
There are a lot of Panasonic Electric Works
AXK724147G Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
