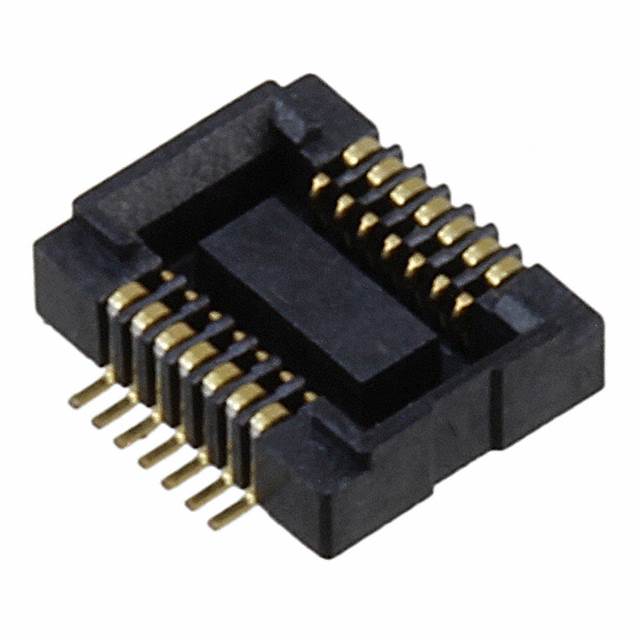

AXK714147G
Or copy the link below:
- Mfr.Part #
- AXK714147G
- Manufacturer
- Panasonic
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 14POS SMD GOLD
- Stock
- 37,539
- In Stock ：
- 37,539
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Min Operating Temperature :
- -55°C
- Contact Material :
- COPPER ALLOY
- JESD-609 Code :
- e4
- UL Flammability Code :
- 94V-0
- Number of Positions :
- 14
- Housing Color :
- Black
- Additional Feature :
- LOW PROFILE
- Stack Height (Mating) :
- 1.5mm
- Connector Type :
- Socket, Center Strip Contacts
- Termination :
- Solder
- Length :
- 5.1mm
- Contact Resistance :
- 70mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 10 Weeks
- MIL Conformance :
- No
- Max Current Rating :
- 5A
- Orientation :
- Straight
- Current Rating :
- 300mA
- DIN Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- IEC Conformance :
- No
- Voltage - Rated :
- 60V
- Contact Finish :
- Gold
- Max Voltage Rating (AC) :
- 60V
- Mount :
- Surface Mount
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 85°C
- Pitch :
- 0.016 0.40mm
- Published :
- 2008
- Series :
- P4
- Mixed Contacts :
- No
- Depth :
- 3.75mm
- Total Number of Contacts :
- 14
- Filter Feature :
- No
- Packaging :
- Tape and Reel (TR)
- Number of Rows :
- 2
- Housing Material :
- Polymer
- Mounting Type :
- Surface Mount
- Max Voltage Rating (DC) :
- 6.06kV
- Height Above Board :
- 0.059 1.50mm
- Datasheets
- AXK714147G
Socket, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 14 Positions P4 Gold Solder COPPER ALLOY
AXK714147G Overview
Packaging is in the form of Socket, Center Strip Contacts.An orange Tape & Reel (TR) case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the P4 Series.A Surface Mount socket is required for the mounting of this part.If the temperature is below 85°C, it's best to use it.-55°C is the minimum temperature for this device.Other features include LOW PROFILE, to name just a few.
AXK714147G Features
P4 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: LOW PROFILE
AXK714147G Applications
There are a lot of Panasonic Electric Works
AXK714147G Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
