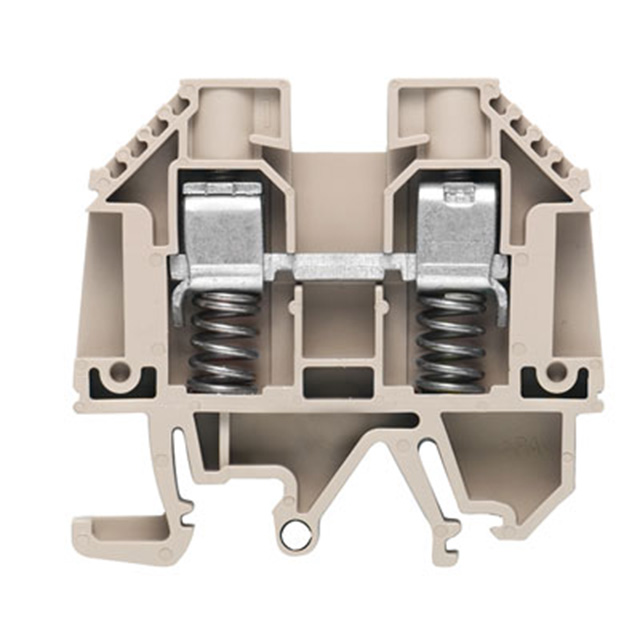

9537490000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Stripping Length :

17mm

Height :

51.1mm

Voltage - Rated :

6kV

Depth :

9.9mm

Mount :

CABLE

Length :

56.6mm

Additional Feature :

STANDARD: UL 94V-0

Orientation :

Straight

Termination Style :

Screw

Approval Agency :

CE, CSA, IEC, UR

Voltage :

600V

Material Flammability Rating :

UL94 V-0

Type :

Feed Through

Weight :

22.18g

Wire Gauge or Range - AWG :

6-16 AWG

ECCN Code :

EAR99

Lead Free :

Lead Free

HTS Code :

8536.69.40.40

Max Current Rating :

50A

Radiation Hardening :

No

Wire/Cable Gauge :

6 AWG

Color :

Beige

Wire Gauge (Min) :

6 AWG

Factory Lead Time :

12 Weeks

RoHS Status :

RoHS Compliant

Width :

9.9mm

Max Operating Temperature :

120°C

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2009

Number of Decks :

1

Number of Levels :

1

Current Rating :

57A

Series :

W

Current :

50A

Max Supply Voltage :

150V

Current - IEC :

57A

Voltage - IEC :

500V

Number of Contacts :

2

Wire Gauge or Range - mm² :

1.5-16mm2

Flammability Rating :

UL94 V-0

Safety Approval :

UL; CSA; CE

Pbfree Code :

yes

Min Operating Temperature :

-50°C

Wire Gauge (Max) :

16 AWG

Material - Insulation :

Thermoplastic, Wemid
