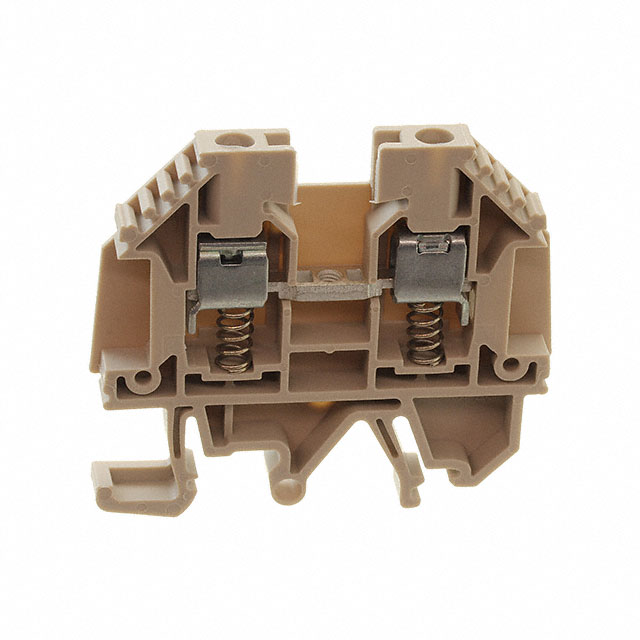

9537450000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Number of Rows :

1

Wire Gauge (Max) :

26 AWG

Weight :

12.32g

Height :

51.5mm

Number of Positions :

2

Stripping Length :

15mm

Width :

6.1mm

Radiation Hardening :

No

Number of Levels :

1

RoHS Status :

RoHS Compliant

Material - Insulation :

Thermoplastic, Wemid

Flammability Rating :

UL94 V-0

Current :

28A

Approval Agency :

CE, CSA, IEC, UR

Factory Lead Time :

6 Weeks

Lead Free :

Lead Free

Number of Decks :

1

Color :

Beige

Wire Gauge or Range - AWG :

10-26 AWG

Voltage :

600V

Mount :

CABLE

Safety Approval :

UL; CSA; CE

Voltage - Rated :

6kV

Pbfree Code :

yes

ECCN Code :

EAR99

Termination Style :

Screw

Wire Gauge (Min) :

10 AWG

Material Flammability Rating :

UL94 V-0

Additional Feature :

STANDARD: UL 94V-0

Length :

60mm

Voltage - IEC :

500V

HTS Code :

8536.69.40.40

Current - UL :

30A

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2008

Series :

W

Current Rating :

32A

Orientation :

Straight

Number of Contacts :

2

Type :

Feed Through

Wire Gauge or Range - mm² :

0.5-6mm2

Wire/Cable Gauge :

10 AWG
