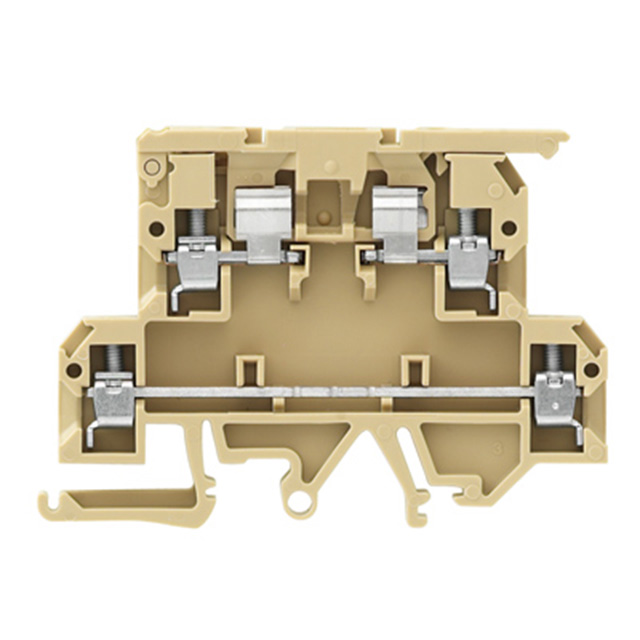

9503350000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Color :

Beige

Approval Agency :

CE, CSA, IEC, UR

Wire/Cable Gauge :

22 AWG

Factory Lead Time :

8 Weeks

Height :

65mm

Current Rating :

6.3A

Wire Gauge or Range - mm² :

0.5-4mm2

Disconnect Type :

Fuse, Lever

Lead Free :

Lead Free

Number of Levels :

2

Type :

Disconnect, Feed Through

Fuse Type :

5mm x 20mm, 5mm x 25mm

Termination Style :

Screw

Number of Rows :

4

Orientation :

Straight

Voltage :

300V

Number of Decks :

1

Wire Gauge (Max) :

22 AWG

Wire Gauge (Min) :

12 AWG

Housing Material :

Nylon

Moisture Sensitivity Level (MSL) :

Not Applicable

Terminal Width :

8.0mm

Stripping Length :

9mm

Flammability Rating :

UL94 V-2

Current :

10A

Voltage - Rated :

6kV

RoHS Status :

RoHS Compliant

Wire Gauge or Range - AWG :

12-22 AWG

Safety Approval :

UL; CSA

ECCN Code :

EAR99

Series :

W

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Ways :

1

Voltage - IEC :

500V

Length :

73.5mm

Width :

8mm

Material Flammability Rating :

UL94 V-2

Radiation Hardening :

No

Current - IEC :

6.3A

Published :

2002

REACH SVHC :

No SVHC
