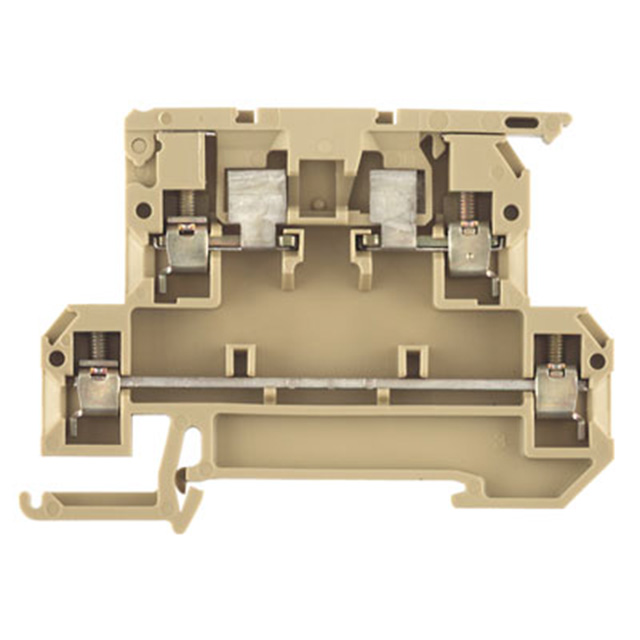

9503310000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Number of Ways :

4

Width :

8mm

Material :

Nylon

Wire/Cable Gauge :

12 AWG

Approval Agency :

CE, CSA, IEC, UR

Mount :

Through Hole

REACH SVHC :

No SVHC

Pbfree Code :

yes

Wire Gauge or Range - mm² :

0.5-4mm2

Type :

Disconnect, Feed Through

Current Rating :

6.3A

ECCN Code :

EAR99

Max Operating Temperature :

100°C

Terminal Width :

8.0mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Fuse Type :

5mm x 20mm

Wire Gauge or Range - AWG :

12-22 AWG

Voltage - Rated :

6kV

Wire Gauge (Min) :

12 AWG

Termination Style :

Screw

Connector Type :

Terminal Block

Max Current Rating :

10A

Number of Decks :

1

Flammability Rating :

UL94 V-2

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Current :

10A

Pitch :

8mm

Lead Free :

Lead Free

Height :

55.6mm

Material Flammability Rating :

UL94 V-2

Number of Contacts :

2

Number of Positions :

4

Housing Material :

Polyamide

Disconnect Type :

Fuse, Lever

Moisture Sensitivity Level (MSL) :

Not Applicable

Wire Gauge (Max) :

22 AWG

Orientation :

Straight

Series :

SAK

Safety Approval :

UL; VDE; CSA

Number of Rows :

1

Factory Lead Time :

12 Weeks

Max Supply Voltage :

500V

Min Operating Temperature :

-50°C

Voltage :

300V

Color :

Beige

Published :

2003

Stripping Length :

9mm

Current - IEC :

6.3A

Depth :

8mm

Length :

73.5mm
