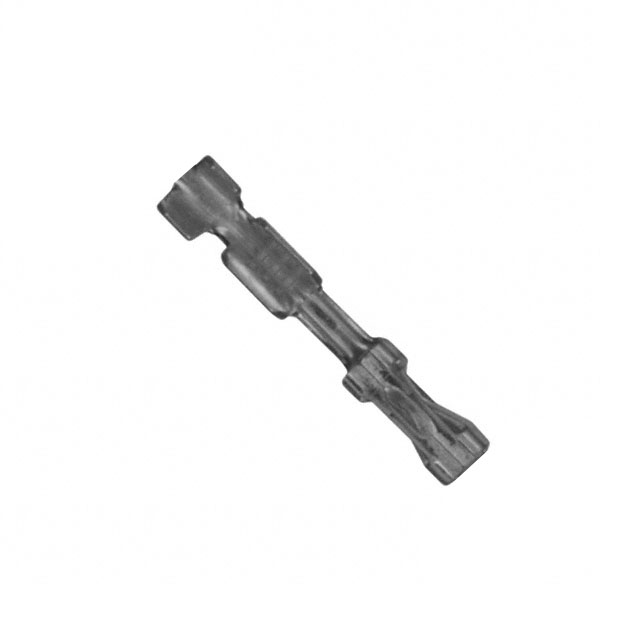

87809-2
Or copy the link below:
- Mfr.Part #
- 87809-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 22-26AWG CRIMP TIN
- Stock
- 16,033
- In Stock ：
- 16,033
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- ELV :
- Compliant
- Wire/Cable Type :
- Discrete
- Contact Finish :
- Tin
- DIN Conformance :
- No
- Lead Free :
- Lead Free
- Voltage - Rated AC :
- 250V
- Contact Resistance :
- 12mOhm
- HTS Code :
- 8536.90.40.00
- Pbfree Code :
- yes
- Design Use :
- POWER AND SIGNAL
- Connector Support Type :
- CONNECTOR ACCESSORY
- Wire Gauge (Max) :
- 26 AWG
- Max Operating Temperature :
- 105°C
- Contact Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Factory Lead Time :
- 5 Weeks
- Depth :
- 2.03mm
- Approval Agency :
- CSA
- MIL Conformance :
- No
- Series :
- AMPMODU MOD V
- Published :
- 2008
- Operating Supply Voltage :
- 250V
- Length :
- 11.45mm
- Contact Current Rating :
- 3A
- Assembly Item Name :
- Contact
- Pin or Socket :
- Socket
- Insulation Resistance :
- 5GOhm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -65°C
- Mount :
- CABLE
- Contact Material :
- Bronze
- Contact Termination :
- Crimp
- Packaging :
- Tape and Reel (TR)
- Wire Gauge (Min) :
- 22 AWG
- REACH SVHC :
- Unknown
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Insulation Diameter :
- 1.55 mm
- Wire/Cable Gauge :
- 22 AWG
- ECCN Code :
- EAR99
- Current Rating :
- 3A
- Orientation :
- Straight
- Shielding :
- Unshielded
- IEC Conformance :
- No
- Radiation Hardening :
- No
- Color :
- Blue
- Wire Gauge :
- 22-26 AWG
- Datasheets
- 87809-2
87809-2 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
