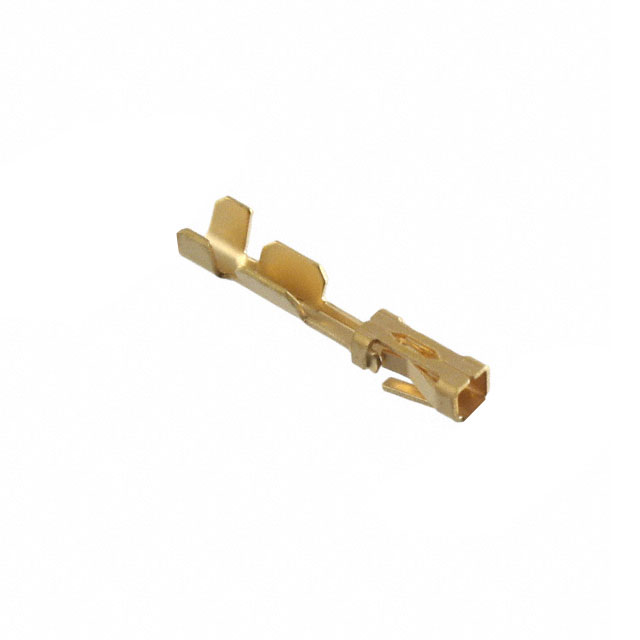

87809-1
Or copy the link below:
- Mfr.Part #
- 87809-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 22-26AWG CRIMP GOLD
- Stock
- 1,700
- In Stock ：
- 1,700
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Product Length :
- 11.45 mm
- Manufacturer :
- TE Connectivity
- Series :
- AMPMODU MOD V
- Contact Type :
- Power/Signal
- Product Category :
- Headers and Wire Housings
- Current Rating :
- 3 A
- Wire Size :
- 26 to 22, 26 AWG
- Number of Contacts :
- 1 POS
- Voltage Rating :
- 250 VAC
- Type :
- Contact
- Maximum Operating Temperature :
- + 105 C
- For Use With :
- AMPMODU Mod V Series Connectors
- Minimum Operating Temperature :
- - 65 C
- Contact Plating :
- Gold Over Nickel
- Housing Color :
- Not Required
- Packaging :
- Strip
- RoHS :
- Details
- Product Depth (mm) :
- 2.03(mm)
- Operating Temperature :
- -65 to 105 °C
- Mounting :
- Cable Mount
- Operating Temp Range :
- -65C to 105C
- Product Type :
- Headers and Wire Housings
- Contact Material :
- Phosphor Bronze
- Termination Style :
- Crimp
- Mounting Style :
- CABLE
- Voltage Rating Max :
- 250VAC
- Pitch (mm) :
- Not Required mm
- Number of Contact Rows :
- Not Required
- Housing Material :
- Not Required
- Brand :
- TE Connectivity
- Housing Gender :
- -
- Current Rating (Max) :
- 3(A)
- Tradename :
- AMPMODU
- Shielded :
- No
- Wire Gauge :
- 22-26(AWG)
- Product Length (mm) :
- 11.3(mm)
- Termination Method :
- Crimp
- Subcategory :
- Headers and Wire Housings
- Application :
- Wire-to-Board
- Gender :
- RCP
- Body Orientation :
- Straight
- Product :
- Contacts
- Contact Gender :
- SKT
- Contact Resistance Max :
- 12(mohm)
- Datasheets
- 87809-1
