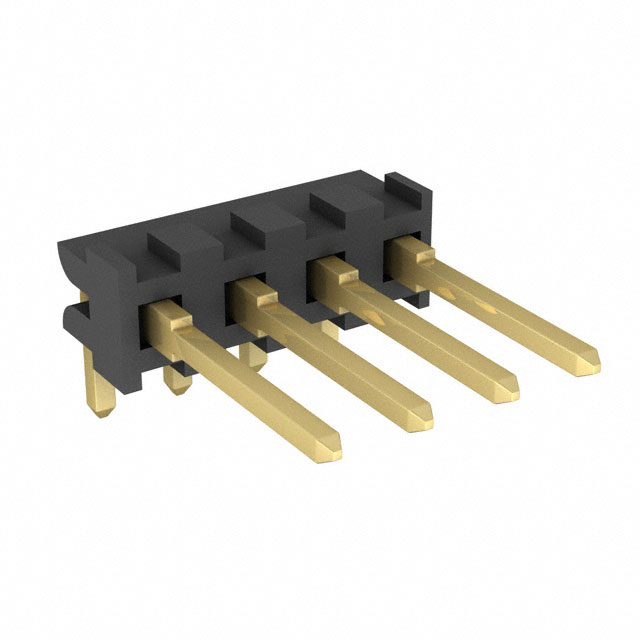

87232-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Lead Length :

2.794mm

Factory Lead Time :

17 Weeks

Series :

AMPMODU Mod II

MIL Conformance :

No

Pbfree Code :

yes

Row Spacing :

2.54 mm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Housing Color :

Black

Number Of PCB Rows :

1

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Style :

Board to Board or Cable

ELV :

Compliant

Reliability :

COMMERCIAL

Depth :

12.24mm

Mount :

Through Hole

Insulation Resistance :

5GOhm

Contact Length - Post :

0.110 2.79mm

Current Rating :

3A

Contact Shape :

Square

Pitch - Mating :

0.100 2.54mm

Number of Conductors :

ONE

Reference Standard :

UL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature :

-65°C~105°C

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Approval Agency :

CSA

Housing Material :

Nylon

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

Flash

ECCN Code :

EAR99

Plating Thickness :

30μin

Length :

9.75mm

High Temperature Housing :

No

Mounting Type :

Through Hole, Right Angle

RoHS Status :

RoHS Compliant

Published :

2008

PCB Thickness :

1.397mm

Material Flammability Rating :

UL94 V-0

PCB Mounting Orientation :

RIGHT ANGLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Current Rating :

3A

Connector Type :

Header

Contact Type :

Male Pin

Contact Material :

Phosphor Bronze

Filter Feature :

No

Fastening Type :

Push-Pull

Shrouding :

Unshrouded

Gender :

Male

Insulation Height :

0.138 3.50mm

Mixed Contacts :

No

Contact Length - Mating :

0.318 8.08mm

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Rated Current (Signal) :

3A

Termination :

Solder

Option :

GENERAL PURPOSE

Packaging :

Bulk

IEC Conformance :

No

Lead Free :

Lead Free

DIN Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

4

Mating Post Length :

8.08mm

Number of Rows :

1

Orientation :

RIGHT ANGLE
