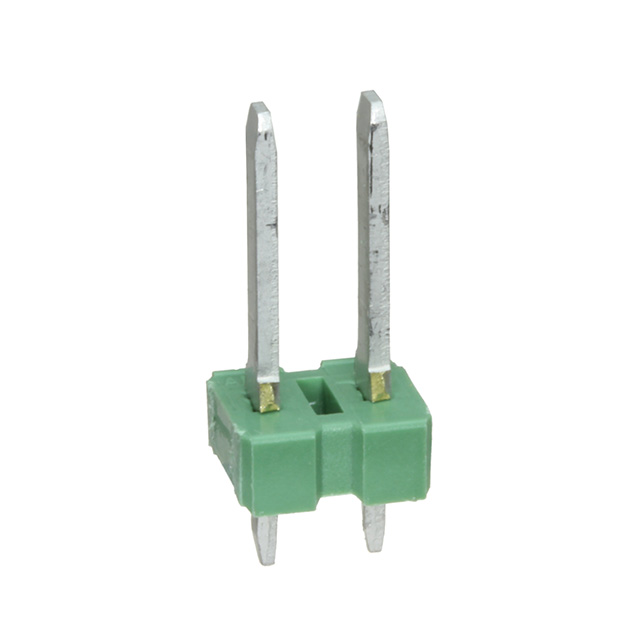

826576-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Shrouding :

Unshrouded

Contact Finish Thickness - Mating :

100.0μin 2.54μm

Mating Post Length :

10.9982mm

PCB Contact Pattern :

RECTANGULAR

Series :

AMPMODU Mod I

Reliability :

COMMERCIAL

Termination :

Solder

DIN Conformance :

No

Overall Contact Length :

0.449 11.40mm

Number of Conductors :

ONE

Style :

Board to Board or Cable

Mounting Type :

Through Hole

Connector Type :

Header, Breakaway

ELV :

Compliant

Number of Positions :

2

Depth :

6.4mm

Option :

GENERAL PURPOSE

Published :

2009

HTS Code :

8536.69.40.40

Number Of PCB Rows :

1

UL Flammability Code :

94V-0

Row Spacing :

3.96 mm

Max Operating Temperature :

105°C

Mixed Contacts :

No

Contact Finish - Mating :

Tin

Flammability Rating :

UL94 V-0

Plating Thickness :

2.5μm

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

Contact Plating :

Lead, Nickel, Tin

ECCN Code :

EAR99

Pbfree Code :

yes

IEC Conformance :

No

Contact Length - Post :

0.134 3.40mm

Contact Type :

Male Pin

Lead Length :

3.4036mm

Contact Gender :

Male

Contact Finish Thickness - Post :

100.0μin 2.54μm

Pitch - Mating :

0.156 3.96mm

Contact Material :

COPPER ALLOY

Insulation Color :

Green

Contact Length - Mating :

0.433 11.00mm

Number of Positions Loaded :

All

Packaging :

Bulk

Contact Shape :

Square

Approval Agency :

CSA

Fastening Type :

Push-Pull

Housing Material :

PBT

Min Operating Temperature :

-65°C

Rated Current (Signal) :

5A

Orientation :

Vertical

PCB Thickness :

1.6002mm

Mount :

Through Hole

Filter Feature :

No

Insulation Resistance :

5000000000Ohm

Keyed :

No

Number of Rows :

1

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Resistance :

12mOhm

Insulation Height :

0.118 3.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

21 Weeks

MIL Conformance :

No

RoHS Status :

RoHS Compliant
