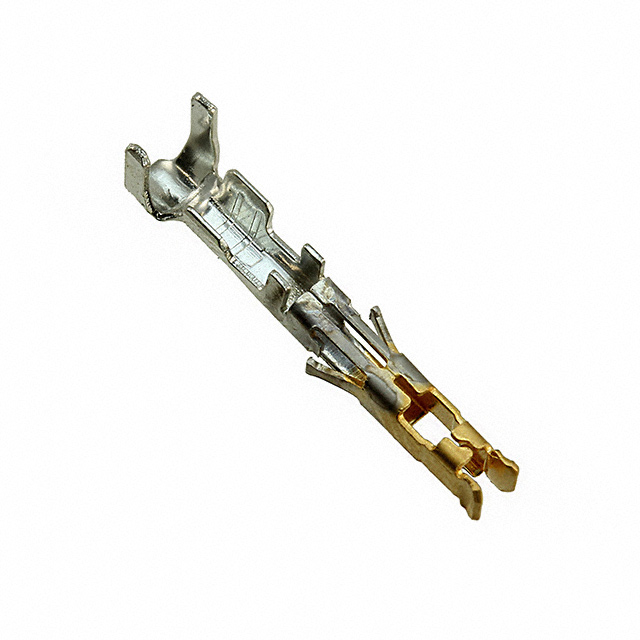

794138-3
Or copy the link below:
- Mfr.Part #
- 794138-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 18-22AWG CRIMP GOLD
- Stock
- 13,960
- In Stock ：
- 13,960
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Lead Free :
- Not Applicable
- Pin or Socket :
- Socket
- Wire Gauge (Min) :
- 18 AWG
- Factory Lead Time :
- 15 Weeks
- Wire Gauge :
- 18-22 AWG
- Series :
- AMP-DUAC
- Rated Current :
- 9A
- Contact Termination :
- Crimp
- Gender :
- FEMALE
- Shielding :
- Unshielded
- Mount :
- CABLE
- Wire Gauge (Max) :
- 22 AWG
- Orientation :
- Straight
- Rated Voltage(AC) :
- 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Insulation Diameter :
- 2.3876 mm
- Min Operating Temperature :
- -67°C
- Plating Thickness :
- 2.54μm
- RoHS Status :
- Non-RoHS Compliant
- ECCN Code :
- EAR99
- Assembly Item Name :
- Contact
- Contact Finish Thickness :
- 30.0μin 0.76μm
- HTS Code :
- 8536.90.40.00
- Connector Support Type :
- CONNECTOR ACCESSORY
- Rated Voltage(DC) :
- 600V
- Cable Entry-Max :
- 0.094 inch
- Contact Finish :
- Gold
- Circuit Application :
- Power
- ELV :
- Non-Compliant
- Max Operating Temperature :
- 221°C
- Cable Entry-Min :
- 0.059 inch
- Underplate Material :
- Nickel
- Contact Material :
- Bronze
- IEC Conformance :
- No
- Wire/Cable Gauge :
- 18 AWG
- Packaging :
- Tape and Reel (TR)
- Published :
- 2004
- Contact Current Rating :
- 9A
- Terminal Type :
- Solder
- Length :
- 14.8mm
- DIN Conformance :
- No
- Datasheets
- 794138-3
794138-3 datasheet pdf and Rectangular Connectors - Contacts product details from TE Connectivity AMP Connectors stock available at Xinshop
