Mfr.Part #
794106-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description

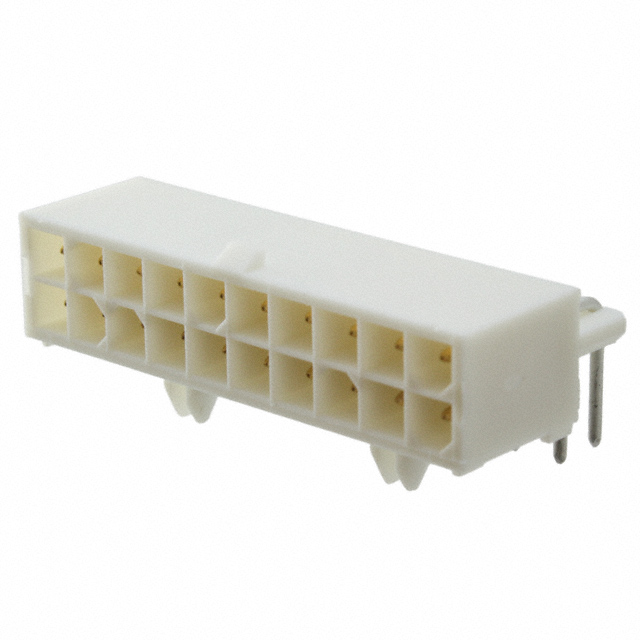

CONN HEADER R/A 20POS 4.14MM
Stock
33,721
In Stock :
33,721

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Insulation Height :
0.386 9.80mm
Feature :
Board Lock
Mixed Contacts :
No
Current Rating :
9.5A
RoHS Status :
Non-RoHS Compliant
Contact Plating :
Lead, Tin
UL Flammability Code :
94V-0
VDE Tested :
yes
Max Voltage Rating (AC) :
600V
Contact Finish Thickness - Post :
150.0μin 3.81μm
Shrouding :
Shrouded - 4 Wall
Factory Lead Time :
13 Weeks
Number of Rows :
2
Radiation Hardening :
No
Circuit Application :
Power
Number of Positions Loaded :
All
Packaging :
Bulk
Height :
9.8mm
DIN Conformance :
No
Contact Current Rating :
9.5A
Filter Feature :
No
Insulation Material :
Polyamide (PA), Nylon
Max Voltage Rating (DC) :
600.6kV
Row Spacing - Mating :
0.163 (4.14mm)
Insulation Color :
White
Style :
Board to Cable/Wire
Empty Shell :
No
Connector Type :
Header
Mounting Type :
Through Hole, Right Angle
Applications :
GENERAL PURPOSE
ELV :
Non-Compliant
Housing Material :
Nylon
Contact Shape :
Circular
Lead Free :
Contains Lead
MIL Conformance :
No
Current Rating (Amps) :
Varies by WireGAuge
Flammability Rating :
UL94 V-0
Contact Length - Post :
0.145 3.68mm
Number of Contacts :
20
Material Flammability Rating :
UL94 V-0
Pitch - Mating :
0.163 4.14mm
Contact Type :
Male Pin
Contact Gender :
Male
Contact Finish Thickness - Mating :
150.0μin 3.81μm
Series :
Mini-Universal MATE-N-LOK
Operating Temperature :
-20°C~85°C
Published :
2005
Contact Finish - Mating :
Tin-Lead
Fastening Type :
Locking Ramp
Number of Ports :
1
IEC Conformance :
No
Contact Material :
Brass
Orientation :
RIGHT ANGLE
Termination :
Solder
PCB Mounting Orientation :
RIGHT ANGLE
Approval Agency :
CSA
Voltage - Rated :
600VAC
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Length :
42.98mm
JESD-609 Code :
e0
Width :
9.8mm
Mount :
Through Hole
Datasheets
794106-1
Introducing Headers, Male Pins TE Connectivity AMP Connectors 794106-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-20°C~85°C, 794106-1 pinout, 794106-1 datasheet PDF, 794106-1 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 794106-1 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 794106-1


Mini-Universal MATE-N-LOK Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin-Lead Polyamide (PA), Nylon Board to Cable/Wire 0.386 9.80mm Height

794106-1 Overview


Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Universal MATE-N-LOK Series, it can be found in this category.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -20°C~85°C Operating Temperature.
