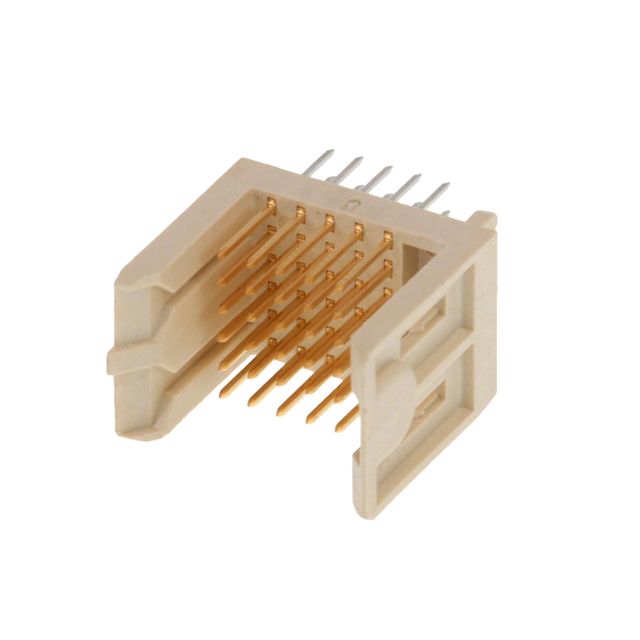

74741-101LF
- Mfr.Part #
- 74741-101LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 30POS PCB
- Stock
- 238
- In Stock :
- 238
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Specialized
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 125°C
- Current Rating :
- 1A
- Pitch :
- 0.079 2.00mm
- RoHS Status :
- RoHS Compliant
- Series :
- Metral®
- Number of Positions :
- 30
- Factory Lead Time :
- 8 Weeks
- Insulation Resistance :
- 5GOhm
- Length :
- 11.93mm
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Bronze
- Mounting Type :
- Through Hole
- Number of Rows :
- 5
- Operating Temperature :
- -55°C~125°C
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 1A
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold, Tin
- Feature :
- Board Guide
- Depth :
- 17.8mm
- Housing Material :
- Polymer
- Mount :
- Through Hole
- Number of Contacts :
- 30
- Housing Color :
- White
- Color :
- Natural
- Min Operating Temperature :
- -55°C
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Termination :
- Solder
- Packaging :
- Tube
- Connector Type :
- Header, Male Pins
- Orientation :
- Straight
- Contact Finish :
- Gold
- Datasheets
- 74741-101LF

Metral® Series Header, Male Pins Solder Gold Natural 30.0μin 0.76μm 30 Positions Pitch: 0.079 2.00mm -55°C~125°C Tube Through Hole
74741-101LF Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Metral® belongs to the Metral® Series.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
74741-101LF Features
Metral® series
74741-101LF Applications
There are a lot of Amphenol ICC (FCI)
74741-101LF Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
