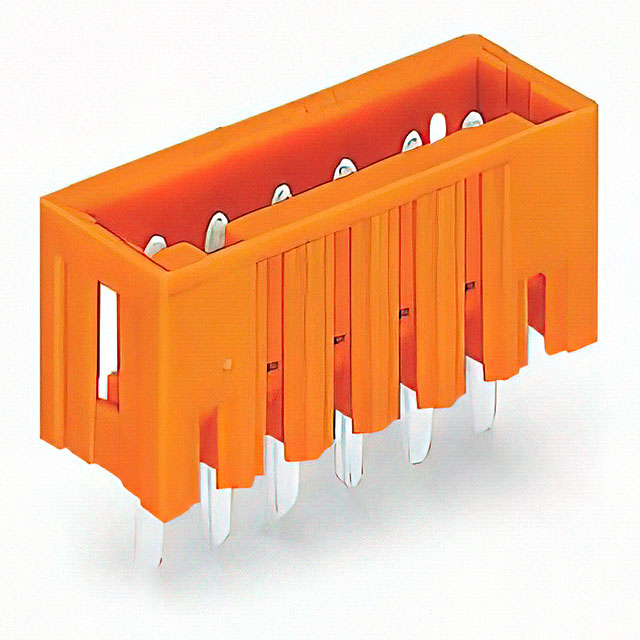

734-238

Share

Or copy the link below:

Mfr.Part #
734-238
Manufacturer
WAGO
Package / Case
Datasheet
Download
Description
THT MALE HEADER; 1.0 X 1.0 MM SO
Stock
55
In Stock :
55

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
WAGO
Product Category :
Headers, Plugs and Sockets
Current - UL :
10 A
Industrial packaging :
yes
Color :
Orange
Pollution degree :
2
Manufacturer :
Wago
Voltage Rating :
300 V
Lead Free :
Lead Free
Insulation Material :
Polyamide
Current :
10 A
Mounting Style :
Through Hole
Voltage - IEC :
320 V
Flammability Rating :
UL94 V-0
Connection :
Print
Orientation :
Straight
Screw Size :
-
Nominal current - rounded value :
10A
Number of Positions :
8
Material of contact surface :
Tin
Board contact surface :
Tin plated
Operating Temperature :
-60°C ~ 100°C
Temperature :
-60-100 °C
Termination Style :
Solder
Rated Voltage :
300V
Type of electric connection :
Soldering connection
Gender :
M
Content :
100pc(s)
Case material :
Polyamide
Pitch :
3.81 mm
Voltage Rating Max :
300V
Pin shape :
Square
Rated surge voltage :
2.5
Insulation Height :
0.406 (10.31mm)
Ingress Protection :
-
Number of Pins :
8
Voltage - UL :
300 V
Nominal voltage :
160V
Total number of pins :
8
Pins per row :
8
Voltage :
300 V
Termination :
Solder
Material Flammability Rating :
UL94 V-0
RoHS :
Compliant
Pitch (mm) :
3.81(mm)
Type :
734-238
Nominal current :
10A
Package :
Box
Current Rating (Max) :
10(A)
Positions Per Level :
8
Width :
32.57mm
Plug Wire Entry :
-
Contact Finish :
Tin
Wire Gauge or Range - AWG :
-
Manufacturer part # :
734-238
Product Depth (mm) :
8.5(mm)
Height :
14.8mm
Contact Plating :
Tin
Length :
8.5mm
Number of Contacts :
8 Pole
Contact Mating Finish :
Tin
Packaging :
Box
Header Orientation :
Vertical
Features :
-
Series :
2140
Housing Color :
Orange
Current - IEC :
10A
No. of rows :
1
Inflammability class of insulation material according to with UL94 :
V0
Torque - Screw :
-
Number of Levels :
1
Contact Tail Length :
0.177 (4.50mm)
Current Rating :
10 A
Rated current In :
10
Product Length (mm) :
32.57(mm)
Dim :
(L x W x H) 8.5 x 32.57 x 14.8 mm
Max. temperature :
+100°C
Connector contact surface :
Tin plated
Mounting Type :
Through Hole
Rated Current :
10A
Packaging type :
Carton (box)
CS :
3.81mm
Product Status :
Active
Type of fastening :
Solder
Wire Strip Length :
-
Mount :
Through Hole
Termination Method :
Solder
Number of Poles :
8
Body Orientation :
Straight
Over voltage category :
III
Min. temperature :
-60°C
REACH SVHC :
No SVHC
Housing Material :
Polyamide (PA66), Nylon 6/6
Wire Gauge or Range - mm² :
-
Contact Material :
Electrolytic Copper
Approvals :
CB, UL
Weight :
2.359 g
Number of Contact Rows :
1
Introducing Headers, Plugs and Sockets WAGO 734-238 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-60°C ~ 100°C, Number of Pins:8, Voltage:300 V, Type:734-238, Mounting Type:Through Hole, 734-238 pinout, 734-238 datasheet PDF, 734-238 amp .Beyond Headers, Plugs and Sockets WAGO 734-238 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.
