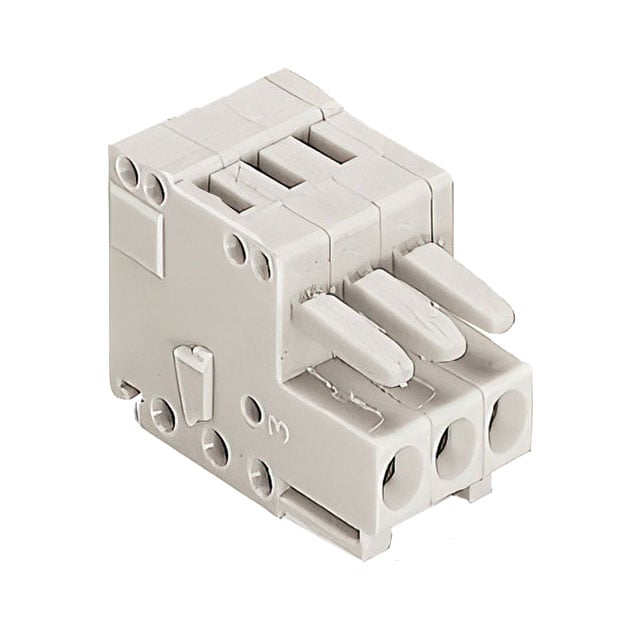

734-103

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Height :

13.40mm

Wire Gauge :

14-28(AWG)

Connectable conductor cross section solid-core :

0.08 - 1.5

Packaging :

Box

Type of electric connection :

Spring clamp connection

Stripping length (max.) :

7.00mm

Manufacturer part # :

734-103

Material contact :

Other copper alloys

With protective conductor :

No

Rated surge voltage :

2.5

Wire/Cable Gauge :

28 AWG

Current Rating (Max) :

10(A)

Gender :

F

Ingress Protection :

-

Header Orientation :

-

AWG (min.) :

28

Type :

Terminal Block

Contact Mating Finish :

Tin

Mounting Type :

Free Hanging (In-Line)

RoHS :

Compliant

Operating Temperature :

-60°C ~ 100°C

Number of Contact Rows :

1

Lead Free :

Lead Free

Degree of protection (IP), mounted :

IP20

REACH SVHC :

No SVHC

Current Rating :

10 A

Rated current In :

10

Nominal voltage :

300V

Width :

18.60mm

Package :

Box

max. cross section :

1.5mm²

Case material :

PA 66

Features :

Retention Latches (Non-Wire Side)

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Connector Type :

Socket

Length :

12.70mm

Number of Positions :

3

Nominal current :

10A

Operating Temp Range :

-60C to 100C

Contact Pitch (mm) :

3.5(mm)

Connector contact surface :

Tin plated

Rad Hardened :

No

Product Depth (mm) :

18.6(mm)

Mounting Style :

CABLE

Product Status :

Active

Wire Gauge or Range - AWG :

14-28 AWG

Content :

200pc(s)

Contact Material :

Copper Alloy/Steel

Contact Plating :

Tin

Positions Per Level :

3

Current - IEC :

10A

Over voltage category :

III

Housing Color :

Light Gray

Termination Method :

Clamp

Nominal current - rounded value :

10A

Pins per row :

3

Pitch :

0.138 (3.50mm)

Voltage - IEC :

320 V

Contact Tail Length :

-

Connection :

Spring-loaded terminal

Min. cross section :

0.08mm²

Dim :

(L x W x H) 12.70 x 18.60 x 13.40 mm

No. of rows :

1

Number of Poles :

3

Series :

734

Housing Material :

Polyamide 6/6

Wire Strip Length :

6-7mm

Inflammability class of insulation material according to with UL94 :

V0

Material housing :

Plastic

Wire Gauge or Range - mm² :

0.08-1.5mm²

Material Flammability Rating :

UL94 V-0

Operating Voltage (Max) :

300V

Number of Rows :

1

Color :

Grey

AWG max. :

14

Number of Levels :

1

Torque - Screw :

-

Material of contact surface :

Tin

Product Height (mm) :

13.4(mm)

Plug Wire Entry :

180°

Current - UL :

10 A

Body Orientation :

Straight

Mount :

Clamp

CS :

3.50mm

Pollution degree :

2

Industrial packaging :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 1.5

Wire Size (AWG) :

28AWG to 14AWG

Rated Current :

10A

Voltage Rating :

300 V

Wire Gauge (Max) :

14 AWG

Wire Gauge (Min) :

28 AWG

Connectable conductor cross section multi-wired :

0.08 - 1.5

Flammability Rating :

UL94 V-0

Insulation Height :

0.528 (13.40mm)

Screw Size :

-

Termination Style :

Screwless - Leg Spring, Push-In Spring

Termination :

Cage Clamp

Voltage - UL :

300 V

Rated Voltage :

300V

Total number of pins :

3

Number of Contacts :

3(POS)
