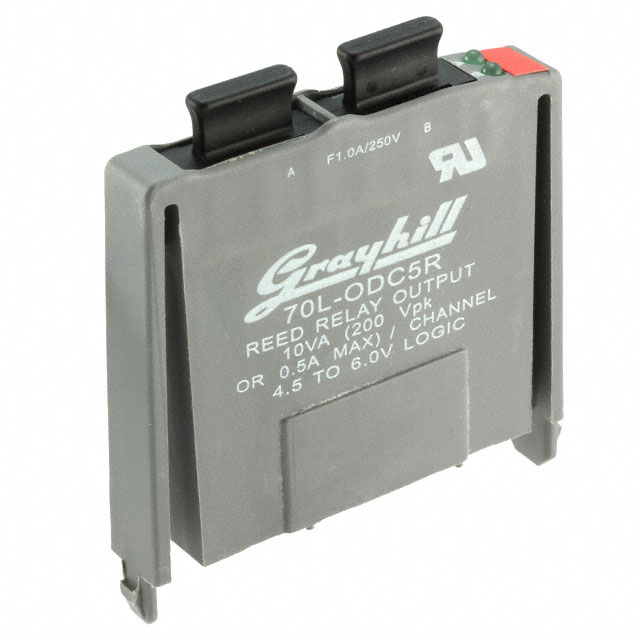

70L-ODC5R

Manufacturer :

Grayhill, Inc.

Product Category :

I/O Relay Modules

Mounting Style :

Din-Rail

Technology :

Solid State

Resistance :

164Ohm

Throw Configuration :

SPST

Termination :

PCB

Agency Approvals :

UL/CSA

Load Voltage (Max) :

200VDC/200VAC

Output Voltage :

3 V to 60 V

Number of Pins :

9

Product Category :

I/O Modules

Brand :

Grayhill

Max Input Voltage (DC) :

200.2kV

Module Type :

Output Module

REACH SVHC :

No SVHC

Load Current :

500mA

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

16 Weeks

Published :

2003

Product Type :

I/O Modules

Package :

Bulk

Current - Input :

30mA

Voltage - Output :

0V~200VAC/DC

Lead Free :

Contains Lead

Output Current :

50 mA

Number of Poles :

1

RoHS :

Details

Voltage - Rated DC :

60V

Current - Output :

0.5A

Turn Off Time :

1ms

Operating Temperature Min Deg. C :

-40C

Package / Case :

Module

Features :

2 Channel, Fused, Status LED(s)

Product :

DC Output Modules

Termination Style :

Solder Pin

Type :

DC Output Module

Max Operating Temperature :

70°C

Min Operating Temperature :

-40°C

Input Type :

DC/AC

Input Voltage :

5 V

Case Color :

Gray

Subcategory :

I/O Modules

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Type :

DC/AC

Min Input Voltage :

4.5V

Base Product Number :

70L-OD

Input Voltage (Max) :

200VDC/200VAC

Current Rating :

2A

Isolation :

2.5 kV

Turn-Off Delay Time :

1 ms

Operating Temperature Max Deg. C :

70C

Load Voltage (Min) :

0VDC/0VAC

Style :

OpenLine®

Manufacturer :

Grayhill

Series :

70

Input Current :

8 mA

Product Status :

Active

Max Input Voltage :

6V

Voltage - Input :

5VDC (4.5 ~ 6VDC)

Mount :

DIN Rail, PCB, Snap in

Color :

Gray

Turn On Delay Time :

1 ms

Turn On Time :

1ms

I/O Isolation Voltage :

1500Vrms

Feature :

2 Channel, Fused, Status LED(s)

Approval Agency :

CSA, UL
