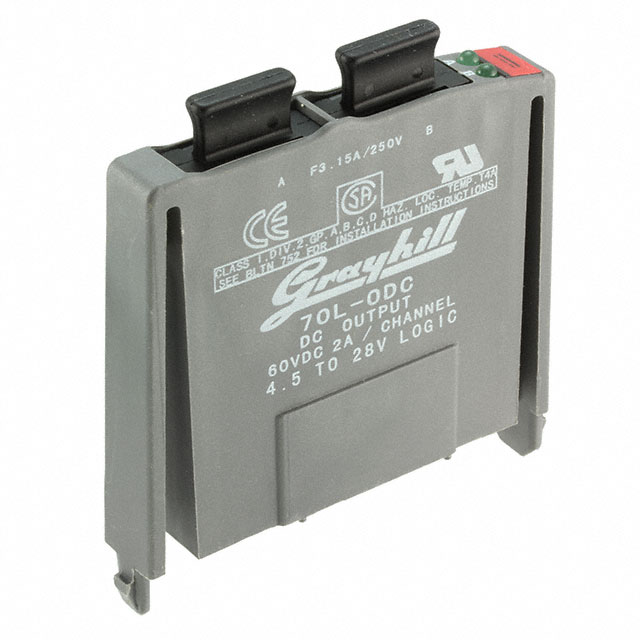

70L-ODC
- Mfr.Part #
- 70L-ODC
- Manufacturer
- Grayhill, Inc.
- Package / Case
- Module
- Datasheet
- Download
- Description
- DC OUTPUT MODULE 2A
- Stock
- 7
- In Stock :
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Grayhill, Inc.
- Product Category :
- I/O Relay Modules
- Product Status :
- Active
- Module Type :
- Output Module
- Min Operating Temperature :
- -40°C
- Packaging :
- Bulk
- Product Category :
- I/O Modules
- Base Product Number :
- 70L-OD
- Product Type :
- I/O Modules
- Factory Lead Time :
- 16 Weeks
- Max Input Voltage :
- 28V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Turn Off Time :
- 0.05ms
- Approvals :
- CE, CSA, TUV, UL
- Color :
- Gray
- Input Voltage (Max) :
- 60VDC
- Min Supply Voltage (DC) :
- 4.5V
- Output Current :
- 2 A
- Technology :
- Solid State
- Output Voltage :
- 60 V
- Operating Temperature Max Deg. C :
- 85C
- Load Voltage (Min) :
- 3VDC
- Width :
- 9.65mm
- Turn On Time :
- 0.02ms
- Pin Count :
- 9
- Approval Agency :
- CE, CSA, TUV, UL
- Load Voltage (Max) :
- 60VDC
- Input Current :
- 7 mA
- Type :
- DC Output Module
- Mounting Style :
- Din-Rail
- Number of Pins :
- 9
- Turn-On Delay Time :
- 20 μs
- Mount :
- DIN Rail, PCB, Snap in, Through Hole
- Current - Input :
- 7mA
- Resistance :
- 2.15kOhm
- Features :
- 2 Channel, Fused, Status LED(s)
- Min Input Voltage :
- 4.5V
- Subcategory :
- I/O Modules
- REACH SVHC :
- No SVHC
- Operating Temperature Min Deg. C :
- -40C
- Input Type :
- DC
- Output Type :
- Digital
- Package :
- Bulk
- RoHS Status :
- Non-RoHS Compliant
- Operating Supply Voltage :
- 60V
- Length :
- 53.1mm
- Series :
- 70
- Load Current (Max) :
- 2A(A)
- Style :
- OpenLine®
- Number of Channels :
- 2
- Mounting :
- Snap-In
- Voltage - Output :
- 3V~60VDC
- Turn On Delay Time :
- 20 μs
- RoHS :
- Details
- Termination :
- PCB
- Lead Free :
- Lead Free
- Current - Output :
- 0.02 ~ 2A
- Package / Case :
- Module
- Current Rating :
- 2A
- Feature :
- 2 Channel, Fused, Status LED(s)
- Max Supply Voltage (DC) :
- 28V
- Throw Configuration :
- SPST
- Height :
- 56.6mm
- I/O Isolation Voltage :
- 2500Vrms
- Max Operating Temperature :
- 85°C
- Published :
- 2003
- Voltage - Input :
- 5VDC (4.5 ~ 28VDC)
- Number of Poles :
- 1
- Manufacturer :
- Grayhill
- Max Input Voltage (DC) :
- 60V
- Agency Approvals :
- CE/CSA/TUV/UL
- Turn-Off Delay Time :
- 50 µs
- Brand :
- Grayhill
- Datasheets
- 70L-ODC
