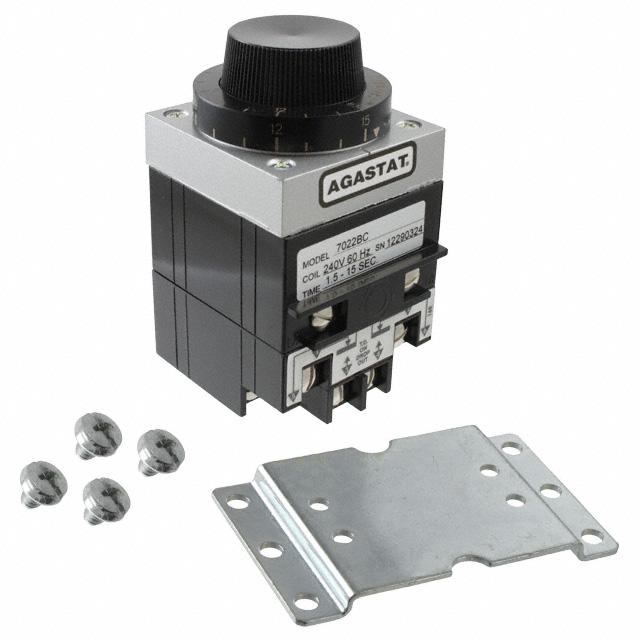

7022BC

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

Time Delay Relays

Min Operating Temperature :

-30°C

Delay Time :

1.5 Sec ~ 15 Sec

Contact/Output Supply Type :

AC/DC

Coil Voltage (AC) :

220V

Factory Lead Time :

10 Weeks

ELV :

Non-Compliant

Contact Rating @ Voltage :

10A @ 240VAC

Contact (DC) Max Rating R Load :

15A@30VDC

Circuit :

DPDT (2 Form C)

Relay Type :

Mechanical Relay

Length :

114.8mm

Radiation Hardening :

No

Timing Initiate Method :

Input Voltage

Electrical Life :

100000 Cycle(s)

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Termination :

Screw

Max Current Rating :

10A

Published :

2008

Lead Free :

Not Applicable

Contact Current Rating :

10A

Mount :

Panel

Timing Adjustment Method :

Hand Dial

Body Breadth :

65.3 mm

Current Rating :

15A

Depth :

78.486mm

Nominal Input Voltage :

240V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Approval Agency :

CE, CSA, UL

Additional Feature :

COIL OPERATE VOLTAGE(AC): 204

Reference Standard :

CE; CSA; FM; UL

Width :

82.5mm

Function :

Off-Delay

ECCN Code :

EAR99

Throw Configuration :

DPDT

Number of Pins :

8

Voltage - Supply :

240VAC

Relay Action :

Momentary

Max Operating Temperature :

75°C

Body Height :

71.9mm

Max Voltage Rating (AC) :

240V

Termination Style :

Screw Terminal

Mounting Type :

Panel Mount

RoHS Status :

Non-RoHS Compliant

Voltage - Rated AC :

20V

Series :

7000, AGASTAT
