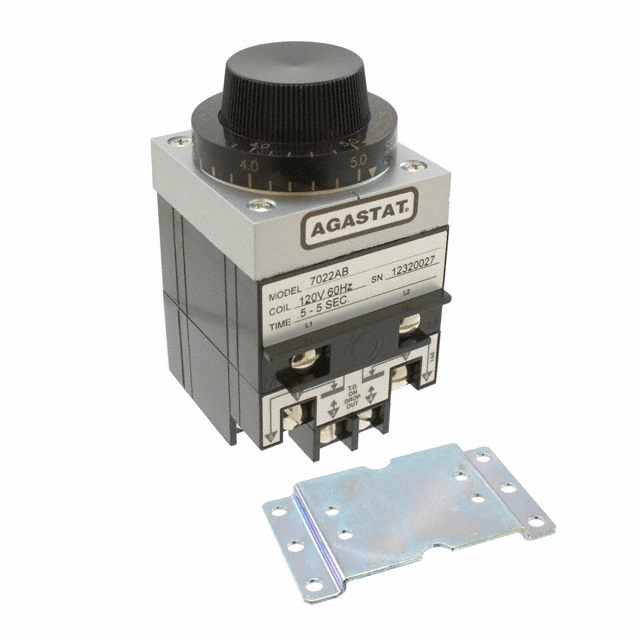

7022AB
Or copy the link below:
- Mfr.Part #
- 7022AB
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- 120
- Datasheet
- Download
- Description
- RELAY TIME DELAY 5SEC 10A 240V
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Time Delay Relays
- Voltage - Supply :
- 120VAC
- Delay Time :
- 0.5 Sec ~ 5 Sec
- Min Operating Temperature :
- -30°C
- Contact (DC) Max Rating R Load :
- 15A@30VDC
- Max Operating Temperature :
- 75°C
- Number of Pins :
- 8
- Package / Case :
- 120
- Mount :
- Panel
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Adjustable Time Delay-Max :
- 5 s
- Max Current Rating :
- 10A
- Contact Rating @ Voltage :
- 10A @ 240VAC
- Approval Agency :
- CE, CSA, UL
- Lead Free :
- Contains Lead
- Electrical Life :
- 100000 Cycle(s)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 10A
- Relay Action :
- Momentary
- Width :
- 82.5mm
- Length :
- 114.8mm
- Contact (AC) Max Rating R Load :
- 10A@240VAC
- Mounting Type :
- Panel Mount
- RoHS Status :
- Non-RoHS Compliant
- Termination Style :
- Screw Terminal
- Nominal Input Voltage (AC) :
- 120V
- Additional Feature :
- COIL OPERATE VOLTAGE(AC): 102
- ECCN Code :
- EAR99
- Relay Type :
- Mechanical Relay
- Current Rating :
- 15A
- Body Breadth :
- 65.3 mm
- Timing Adjustment Method :
- Hand Dial
- Timing Initiate Method :
- Input Voltage
- Circuit :
- DPDT (2 Form C)
- Published :
- 2008
- Body Height :
- 71.9mm
- Reference Standard :
- CE; CSA; FM; UL
- REACH SVHC :
- Unknown
- Max Voltage Rating (AC) :
- 240V
- Factory Lead Time :
- 10 Weeks
- Voltage - Rated AC :
- 240V
- Series :
- 7000, AGASTAT
- Depth :
- 82.6mm
- Contact/Output Supply Type :
- AC/DC
- Coil Voltage (AC) :
- 110V
- Throw Configuration :
- DPDT
- ELV :
- Non-Compliant
- Termination :
- Screw
- Function :
- Off-Delay
- Datasheets
