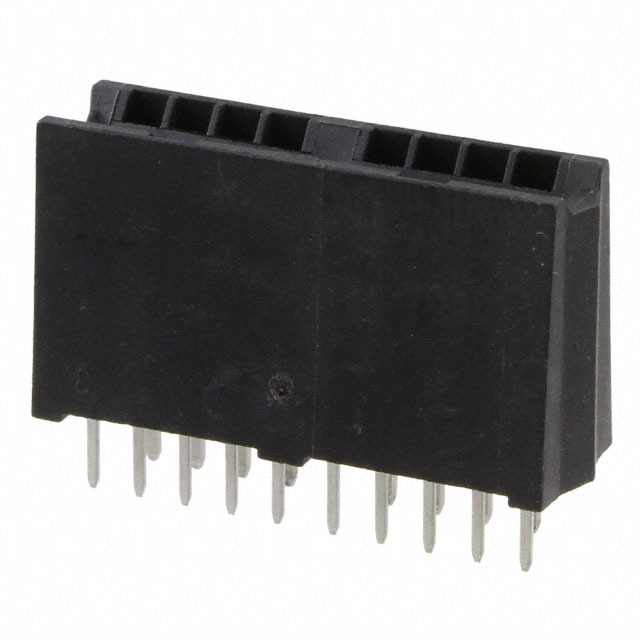

6643460-2
Or copy the link below:
- Mfr.Part #
- 6643460-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 10POS GOLD
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Pitch :
- 2.5mm
- Published :
- 2007
- Body Breadth :
- 0.356 inch
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Power
- Length - Termination :
- 0.16 inch
- Factory Lead Time :
- 18 Weeks
- Number of Contacts :
- 10
- Gender :
- FEMALE
- Pbfree Code :
- yes
- Flammability Rating :
- UL94 V-0
- Number of Signal Positions :
- 8
- Dielectric Withstanding Voltage :
- 1500VDC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Finish :
- Gold
- Read Out :
- Dual
- Number of Conductors :
- ONE
- Contact Material :
- Phosphor Bronze Alloy
- Operating Supply Voltage :
- 250V
- PCB Contact Pattern :
- RECTANGULAR
- Height :
- 15mm
- Card Thickness :
- 0.062 1.57mm
- Contact Style :
- BELLOWED TYPE
- Body/Shell Style :
- Receptacle
- ELV :
- Compliant
- Series :
- Crown Edge, Elcon
- Reference Standard :
- UL
- Housing Material :
- Thermoplastic
- Mounting Type :
- Through Hole
- Card Type :
- Non Specified - Dual Edge
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Insulation Resistance :
- 5000000000Ohm
- Packaging :
- Bulk
- Color :
- Black
- Contact Pattern :
- RECTANGULAR
- Contact Plating :
- Gold, Tin
- Plating Thickness :
- 760 nm
- Rated Current (Signal) :
- 3A
- Mount :
- Through Hole
- Body Length or Diameter :
- 1.055 inch
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Temperature (Min) :
- -55°C
- Orientation :
- Vertical
- Contact Current Rating :
- 35A
- Body Depth :
- 0.591 inch
- Number of Positions :
- 10 (8 + 2 Power)
- Number of Rows :
- 2
- Number Of PCB Rows :
- 2
- Material - Insulation :
- Thermoplastic, Glass Filled
- Connector Type :
- Socket
- PCB Thickness :
- 3.175mm
- Max Current Rating :
- 35A
- Datasheets
- 6643460-2
