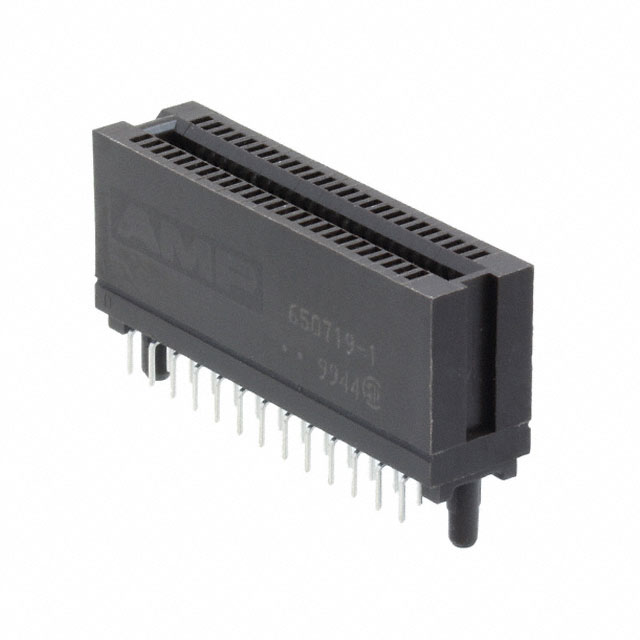

650719-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Length :

37.6mm

Width :

8.89mm

Durability :

100 Cycles

Reference Standard :

UL, CSA

Withdrawl Force-Min :

.139 N

JESD-609 Code :

e0

Body/Shell Style :

Receptacle

Radiation Hardening :

No

Rated Current (Signal) :

1A

Filter Feature :

No

Color :

Brown

Contact Pattern :

RECTANGULAR

Contact Plating :

Gold

Packaging :

Bulk

PCB Contact Pattern :

STAGGERED

MIL Conformance :

No

Contact Style :

BELLOWED TYPE

Contact Material :

Bronze

DIN Conformance :

No

Connector Type :

CARD EDGE CONNECTOR

Mixed Contacts :

No

Lead Pitch :

1.27mm

Number Of PCB Rows :

4

Lead Free :

Contains Lead

Operating Temperature (Max) :

85°C

Number of Conductors :

ONE

Contact Resistance :

30mOhm

Pbfree Code :

No

Card Thickness :

1.5748mm

Height :

15.5mm

Plating Thickness :

30μin

Lead Length :

2.54mm

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C

Housing Material :

Thermoplastic

Underplate Material :

Nickel

Additional Feature :

AMP

Termination :

Solder

RoHS Status :

Non-RoHS Compliant

Number of Rows :

2

Gender :

FEMALE

Mount :

Through Hole

Body Depth :

0.61 inch

Insulation Resistance :

1000000000Ohm

Number of Contacts :

50

Body Breadth :

0.35 inch

ELV :

Compliant

IEC Conformance :

No

Pitch :

1.27mm
