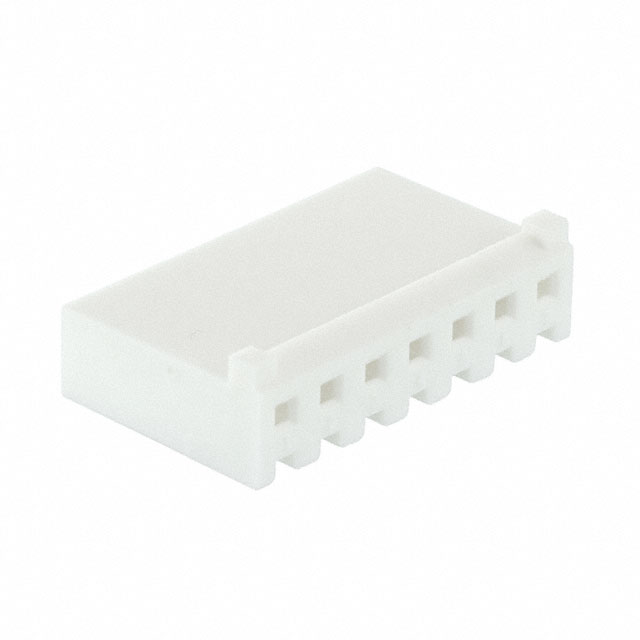

647402-7
Or copy the link below:
- Mfr.Part #
- 647402-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 7POS 3.96MM
- Stock
- 1,536
- In Stock ：
- 1,536
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Number of Contacts :
- 7
- Color :
- Natural
- Wire Gauge (Max) :
- 24 AWG
- Current Rating :
- 6.5A
- Number of Rows :
- 1
- Max Operating Temperature :
- 221°C
- Operating Supply Voltage :
- 250V
- Length :
- 24.638mm
- ELV :
- Compliant
- Mount :
- Cable, Free Hanging
- Height :
- 6.35mm
- Mounting Type :
- Free Hanging (In-Line)
- Feature :
- Polarizing Key
- Depth :
- 16.89mm
- Termination :
- Crimp
- Lead Free :
- Not Applicable
- Published :
- 2008
- Number of Positions :
- 7
- Contact Current Rating :
- 6.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Retention :
- With
- Contact Type :
- Female Socket
- Max Voltage Rating (AC) :
- 250V
- Orientation :
- Straight
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Note :
- Contacts Not Included
- Housing Material :
- Nylon
- Flammability Rating :
- UL94 V-0
- Sealable :
- No
- Approval Agency :
- CSA
- Shrouding :
- No
- Fastening Type :
- Locking Ramp
- Pitch :
- 0.156 3.96mm
- Connector Type :
- Receptacle
- Wire/Cable Gauge :
- 24 AWG
- Housing Color :
- Natural
- Contact Gender :
- FEMALE
- Contact Termination :
- Crimp
- Factory Lead Time :
- 14 Weeks
- Radiation Hardening :
- No
- Wire Gauge (Min) :
- 18 AWG
- Min Operating Temperature :
- -67°C
- RoHS Status :
- RoHS Compliant
- Series :
- SL-156
- Packaging :
- Bulk
- Datasheets
- 647402-7
1 Rows Receptacle Bulk Natural 7 Positions Free Hanging (In-Line) Female Socket Crimp SL-156 Nylon
647402-7 Overview
Packaging for this item is Receptacle.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the SL-156 Series.In many ways, its Polarizing Key feature makes it more powerful.Cable, Free Hanging is used to mount the part.The operating supply voltage of this memory is 250V.
647402-7 Features
SL-156 series
647402-7 Applications
There are a lot of TE Connectivity AMP Connectors
647402-7 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
