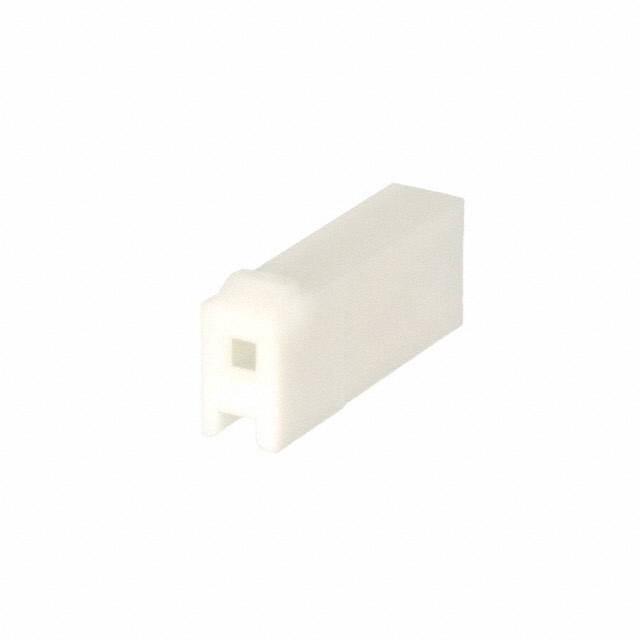

647401-1
Or copy the link below:
- Mfr.Part #
- 647401-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 1POS W/RAMP
- Stock
- 8,953
- In Stock ：
- 8,953
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Pitch :
- 3.9624mm
- Height :
- 6.35mm
- Contact Termination :
- Crimp
- Mounting Type :
- Free Hanging (In-Line)
- Max Operating Temperature :
- 221°C
- Contact Type :
- Female Socket
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Approval Agency :
- CSA
- Fastening Type :
- Locking Ramp
- Length :
- 4.826mm
- Termination :
- Crimp
- Series :
- SL-156
- Wire Gauge (Max) :
- 24 AWG
- Connector Type :
- Receptacle
- Number of Positions :
- 1
- Note :
- Contacts Not Included
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Mating Retention :
- With
- Housing Color :
- Natural, White
- Min Operating Temperature :
- -67°C
- ELV :
- Compliant
- Color :
- Natural
- Shrouding :
- No
- Sealable :
- No
- Number of Contacts :
- 1
- Lead Free :
- Not Applicable
- Published :
- 2009
- Current Rating :
- 6.5A
- Flammability Rating :
- UL94 V-0
- Wire/Cable Gauge :
- 24 AWG
- Housing Material :
- Nylon
- Contact Current Rating :
- 6.5A
- Wire Gauge (Min) :
- 18 AWG
- Packaging :
- Bulk
- Depth :
- 16.76mm
- Number of Rows :
- 1
- Operating Supply Voltage :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 250V
- Mount :
- Cable, Free Hanging
- Datasheets
- 647401-1
1 Rows Receptacle Bulk Natural 1 Positions Free Hanging (In-Line) Female Socket Crimp SL-156 Nylon
647401-1 Overview
The product comes in a package of Receptacle.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the SL-156 Series.It is mounted by Cable, Free Hanging.Its operating supply voltage is 250V.
647401-1 Features
SL-156 series
647401-1 Applications
There are a lot of TE Connectivity AMP Connectors
647401-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
