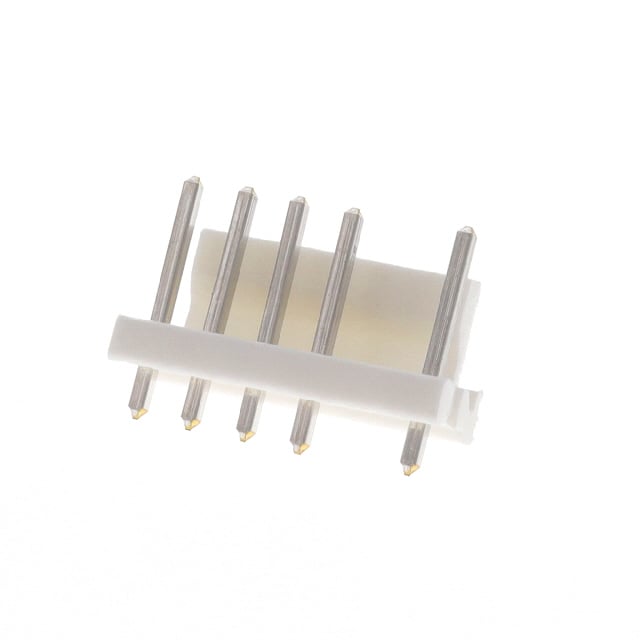

643569-3
Or copy the link below:
- Mfr.Part #
- 643569-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3.96MM
- Stock
- 26,308
- In Stock ：
- 26,308
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Power Positions :
- 6
- Housing Material :
- Polyester
- Lead Free :
- Lead Free
- Mating Post Length :
- 10.16mm
- Connector Type :
- Header
- Published :
- 2012
- PCB Thickness :
- 3.48mm
- Packaging :
- Bulk
- Operating Temperature :
- -55°C~105°C
- Number of Positions Loaded :
- 5
- Contact Length - Post :
- 0.125 3.18mm
- Height :
- 10.8mm
- Sealable :
- No
- Depth :
- 7.62mm
- Insulation Material :
- Thermoplastic, Glass Filled
- Flammability Rating :
- UL94 V-0
- Contact Retention :
- Without
- Current Rating :
- 7A
- JESD-609 Code :
- e3
- Circuit Application :
- Power
- Length :
- 23.77mm
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- 0.650 16.51mm
- ELV :
- Compliant
- Lead Length :
- 3.18mm
- Contact Gender :
- Male
- Series :
- MTA-156
- Fastening Type :
- Friction Lock
- Filter Feature :
- No
- Plating Thickness :
- 2.54μm
- Contact Material :
- COPPER ALLOY
- Contact Length - Mating :
- 0.400 10.16mm
- Pitch - Mating :
- 0.156 3.96mm
- Operating Supply Voltage :
- 600V
- Contact Finish - Mating :
- Tin
- Approval Agency :
- CSA
- Current Rating (Amps) :
- Varies by WireGAuge
- Shrouding :
- Shrouded - 1 Wall
- Number of Rows :
- 1
- Contact Shape :
- Square
- IEC Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Contact Type :
- Male Pin
- Number of Signal Positions :
- 0
- Voltage - Rated AC :
- 600V
- DIN Conformance :
- No
- Contact Current Rating :
- 7A
- Voltage - Rated :
- 600VAC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 16 Weeks
- Max Voltage Rating (AC) :
- 600V
- Underplate Material :
- Nickel
- Mixed Contacts :
- No
- Applications :
- General Purpose, Industrial
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Termination :
- Solder
- Housing Color :
- Natural
- Insulation Height :
- 0.425 10.80mm
- Mount :
- Through Hole
- Style :
- Board to Cable/Wire
- Datasheets
- 643569-3
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled Board to Cable/Wire 0.425 10.80mm Height
643569-3 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the MTA-156 Series.A possible application for the device is General Purpose, Industrial.Through Hole is used to mount the part.The operating supply voltage of this memory is 600V.In this case, the device operates at -55°C~105°C Operating Temperature.
643569-3 Features
MTA-156 series
643569-3 Applications
There are a lot of TE Connectivity AMP Connectors
643569-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
