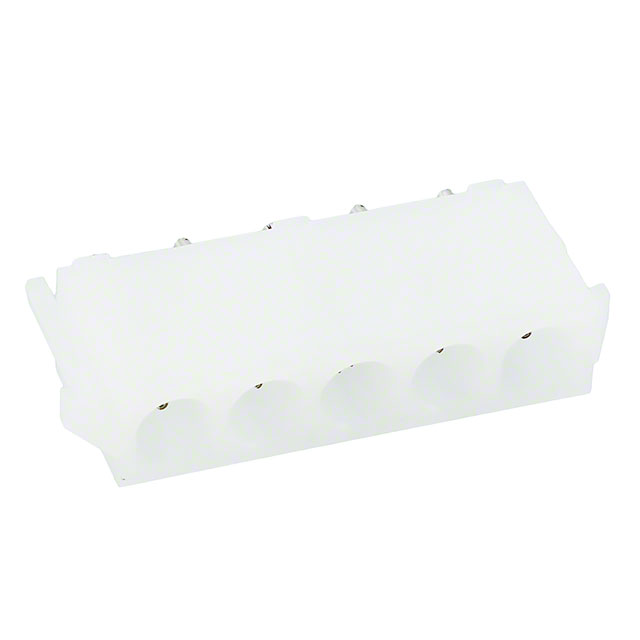

643405-1
Or copy the link below:
- Mfr.Part #
- 643405-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 6.35MM
- Stock
- 1,680
- In Stock ：
- 1,680
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.550 13.97mm
- Contact Length - Post :
- 0.155 3.94mm
- Number of Conductors :
- ONE
- Voltage - Rated :
- 600VAC
- Mounting Type :
- Through Hole
- Width :
- 13.97mm
- Sealable :
- No
- Pbfree Code :
- yes
- Number of Terminations :
- 5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Packaging :
- Bulk
- Number of Rows :
- 1
- REACH SVHC :
- No SVHC
- Reference Standard :
- UL
- Approval Agency :
- CSA
- Length :
- 33.02mm
- Insulation Material :
- Polyamide (PA), Nylon
- VDE Tested :
- yes
- RoHS Status :
- RoHS Compliant
- DIN Conformance :
- No
- Contact Type :
- Male Pin
- IEC Conformance :
- No
- Orientation :
- Vertical
- Published :
- 2005
- Series :
- Universal MATE-N-LOK
- Housing Color :
- Natural
- PCB Thickness :
- 3.18mm
- Contact Finish - Mating :
- Tin
- Mount :
- Through Hole
- Lead Free :
- Lead Free
- Operating Supply Voltage :
- 600V
- Fastening Type :
- Locking Ramp
- Contact Gender :
- Male
- UL Flammability Code :
- 94V-2
- Pitch - Mating :
- 0.250 6.35mm
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Factory Lead Time :
- 15 Weeks
- Flammability Rating :
- UL94 V-2
- Housing Material :
- Nylon
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Mixed Contacts :
- No
- JESD-609 Code :
- e3
- Contact Material :
- Phosphor Bronze
- Contact Shape :
- Circular
- Max Voltage Rating (AC) :
- 600V
- Empty Shell :
- No
- Termination :
- Solder
- Height :
- 7.62mm
- Applications :
- GENERAL PURPOSE
- Circuit Application :
- Power
- Filter Feature :
- No
- Shrouding :
- Shrouded - 4 Wall
- Contact Retention :
- Without
- ECCN Code :
- EAR99
- Feature :
- Board Guide
- Current Rating :
- 19A
- Body Breadth :
- 0.3 inch
- Operating Temperature :
- -40°C~105°C
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 12A
- Datasheets
- 643405-1
Universal MATE-N-LOK Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Tin Polyamide (PA), Nylon Board to Cable/Wire 0.550 13.97mm Height
643405-1 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Universal MATE-N-LOK Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Guide feature.There is a mounting hole at Through Hole.A chip with 5 terminations can be found.It runs on 600V voltage.Devices operate at -40°C~105°C operating temperatures.
643405-1 Features
5 basic kinds of terminations
Universal MATE-N-LOK series
643405-1 Applications
There are a lot of TE Connectivity AMP Connectors
643405-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
