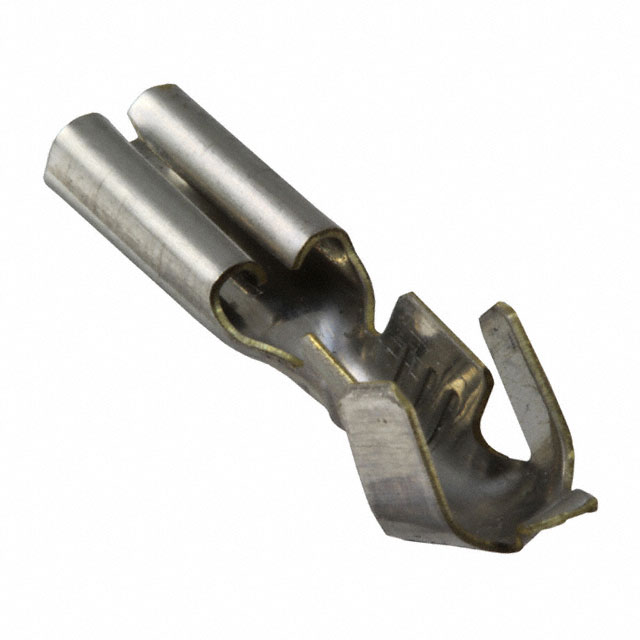

63703-1
Or copy the link below:
- Mfr.Part #
- 63703-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 16-20AWG 0.110
- Stock
- 1,642
- In Stock ：
- 1,642
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- ECCN Code :
- EAR99
- Length - Overall :
- 0.635 16.13mm
- Contact Plating :
- Tin
- Series :
- Faston
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Packaging :
- Tape and Reel (TR)
- Gender :
- FEMALE
- Factory Lead Time :
- 8 Weeks
- Mount :
- Free Hanging
- Wire Gauge (Min) :
- 16 AWG
- Published :
- 1997
- HTS Code :
- 8536.90.40.00
- Wire Gauge :
- 16-20 AWG
- Insulation :
- Non-Insulated
- Wire/Cable Type :
- Discrete
- Length - Tab :
- 0.250 6.35mm
- Terminal Type :
- Standard
- Wire Gauge (Max) :
- 20 AWG
- Orientation :
- Straight
- Wire/Cable Diameter :
- 3.556 mm
- Width - Tab :
- 0.110 2.79mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulated Wire Support :
- yes
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Mating Tab Width :
- 2.794mm
- ELV :
- Compliant
- Tab Thickness :
- 0.032 0.81mm
- Wire Cross Section :
- 1.3 mm2
- Insulation Diameter :
- 0.120 ~ 0.140 (3.05mm ~ 3.56mm)
- Contact Material :
- Brass
- Depth :
- 3.73mm
- Length :
- 16.13mm
- Sealable :
- No
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Lead Free :
- Not Applicable
- Termination :
- Crimp
- Datasheets
- 63703-1
63703-1 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
