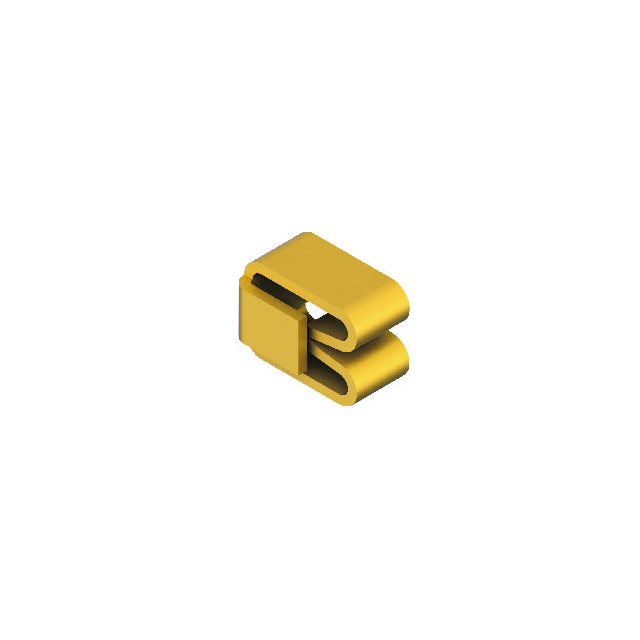

6102
Or copy the link below:
- Mfr.Part #
- 6102
- Manufacturer
- Keystone Electronics Corp.
- Package / Case
- Datasheet
- Download
- Description
- SMT EDGE CONNECTOR, FEMALE
- Stock
- 6,043
- In Stock ：
- 6,043
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Keystone Electronics Corp.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- ELV :
- Compliant
- Length - Tab :
- 0.250 6.35mm
- Mating Tab Width :
- 4.75mm
- Tab Thickness :
- 0.020 0.51mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 9 Weeks
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Packaging :
- Tape and Reel (TR)
- Orientation :
- RIGHT ANGLE
- HTS Code :
- 8536.90.40.00
- Terminal Type :
- Angled - 90°, Flag
- Wire/Cable Type :
- Discrete
- Gender :
- FEMALE
- RoHS Status :
- RoHS Compliant
- Width - Tab :
- 0.187 4.75mm
- Wire/Cable Diameter :
- 4.32 mm
- Depth :
- 5.61mm
- Wire Gauge (Min) :
- 20 AWG
- Insulation Diameter :
- 0.110 ~ 0.170 (2.79mm ~ 4.32mm)
- Insulation :
- Non-Insulated
- Material :
- Brass
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Plating :
- Unplated
- Wire Cross Section :
- 1.3 mm2
- Published :
- 2011
- Wire Gauge :
- 16-20 AWG
- Wire Gauge (Max) :
- 16 AWG
- ECCN Code :
- EAR99
- Series :
- Faston
- Length :
- 13.462mm
- Sealable :
- No
- Insulated Wire Support :
- yes
- Termination :
- Crimp
- Datasheets
- 6102
